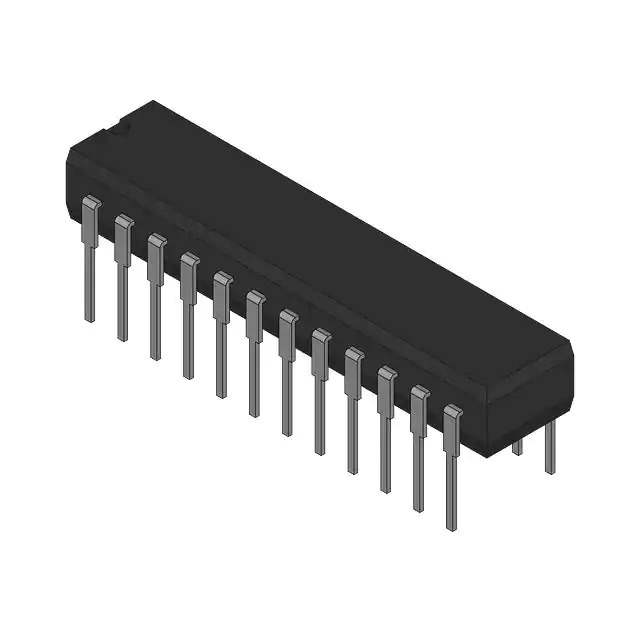

The SN54ALS874BJT is a high-performance integrated circuit from Texas Instruments, renowned for its reliability and versatility in a wide range of digital applications. This particular model is part of the Advanced Low-Power Schottky (ALS) series, which is designed to offer both speed and energy efficiency.

Key Features

• Logic Type: The device features an 8-bit edge-triggered D-type flip-flop with a clear function, making it ideal for capturing and holding data.
• Output Type: It has 3-state outputs, which allow for connection to common data lines and enable multiple outputs to interface without conflict.
• Performance: The SN54ALS874BJT operates at a typical shift frequency of 35 MHz, providing swift data processing capabilities for high-speed computing needs.
• Power Consumption: As part of the ALS series, this device is optimized for low power consumption while maintaining high-speed operation.
• Package / Case: The product is available in a J-Lead ceramic package, ensuring robustness and durability even in harsh environmental conditions.
• Temperature Range: This IC is characterized for operation over the full military temperature range of -55°C to 125°C, making it suitable for demanding military or aerospace applications.
• Compatibility: The SN54ALS874BJT is fully compatible with most TTL families, allowing for easy integration into existing systems without the need for additional logic level translation.

Applications

The SN54ALS874BJT is designed to be used in a variety of digital systems where high-speed, low-power operation is required. Common applications include:

• Data storage and retrieval systems
• Processors and microcontrollers
• Communications equipment
• Instrumentation and test equipment
• Automotive control systems

Quality and Support

Texas Instruments is committed to delivering high-quality products and provides extensive support for the SN54ALS874BJT. Technical documentation, application notes, and design resources are available to assist in the integration and use of this IC in your product designs.
