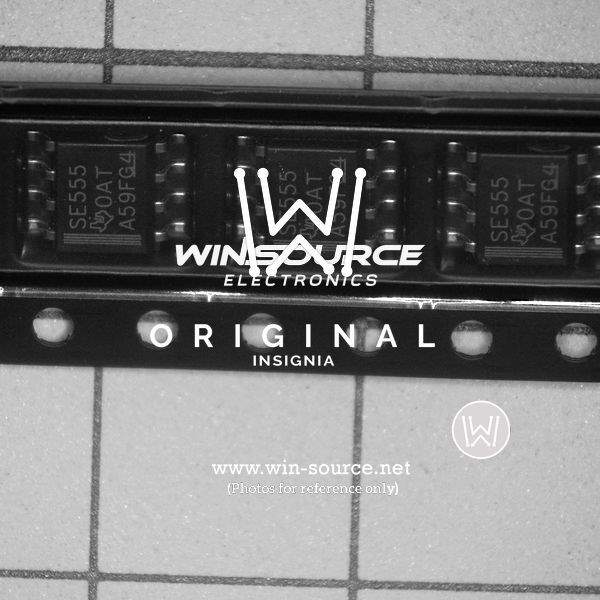

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Type 555 Type, Timer/Oscillator (Single)
Frequency 100kHz
Supply Voltage - Operating 4.5 V to 18 V
Operating Supply Current 10mA
Temperature Range - Operating -55°C to 125°C
Case / Package 8-SOIC
Mounting Surface Mount
Win Source Part Number 028232-SE555DR
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Application Field Used in Clock & Timing
Ultra Librarian 3D Model Ultra Librarian SE555DR CAD Model

Description

The SE555DR is a robust and versatile product from the renowned technology company, Texas Instruments.

  • Type: Timer
  • Family: 555 timers
  • Timing: Microseconds to hours
  • Modes: Astable and monostable
  • Feature: Direct Replacement for SE555/NE555
  • Temperature Stability: 50 ppm per degree Celsius (0.005% per °C)
  • Duty Cycle: Adjustable
  • Output: Can source or sink 200mA
  • Compatibility: TTL compatible
  • Package: 8-pin SOIC
  • Operating Voltage: 4.5V to 16V
