Products specifications Report Issue?

Category Integrated Circuits (ICs) - Interface - Specialized
Mfr Texas Instruments
Package Tape & Reel
Product Status Not For New Designs
Applications Testing Equipment
Interface IEEE 1149.1
Voltage - Supply 3V ~ 3.6V

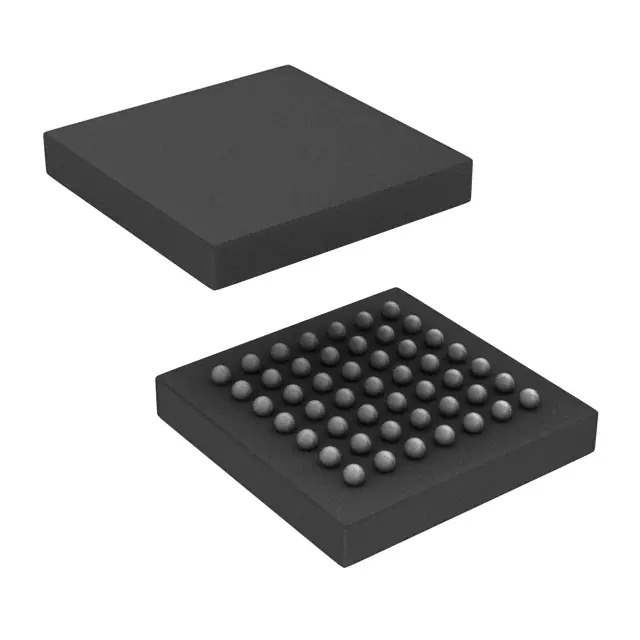

Package / Case 49-LFBGA
Supplier Device Package 49-NFBGA (7x7)
Mounting Type Surface Mount
Base Product Number SCANSTA101
Standard Package 2,000 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 664440-SCANSTA101SMX
Ultra Librarian 3D Model Ultra Librarian SCANSTA101SMX CAD Model

Description

The SCANSTA101SMX, from the renowned semiconductor manufacturer Texas Instruments, is a state-of-the-art multiplexer/demultiplexer switch IC designed to streamline the testing and interfacing of JTAG (Joint Test Action Group) boundary-scan capable devices. This advanced component is part of TI’s broad portfolio of multiplexers that are utilized in various applications, including industrial, communications, and computing systems.

Key Features

  • Efficient Boundary-Scan Architecture: The SCANSTA101SMX is engineered to simplify the boundary-scan testing process, enabling multiple ICs to be tested simultaneously, thereby reducing test time and complexity.
  • High-Speed Operation: This device supports high-speed data transmission, ensuring rapid and reliable communication between devices on a circuit board.
  • Multiple Device Access: It allows for the daisy-chaining of several devices, making it possible to control and test multiple ICs through a single JTAG port.
  • Enhanced Diagnostics: With advanced diagnostic capabilities, the SCANSTA101SMX aids in identifying faults and verifying system functionality, improving overall system reliability.
  • Compact Footprint: Housed in a compact, surface-mount package, this IC saves valuable board space and is suitable for high-density circuit designs.

Applications

  • Industrial automation systems
  • Data communication equipment
  • Telecommunications infrastructure
  • Computing platforms
  • Embedded systems

Technical Specifications

  • Package / Case: 38-TFSOP (0.173", 4.40mm Width)
  • Operating Temperature: -40°C to 85°C
  • Voltage - Supply: 2.3V to 3.6V
  • Mounting Type: Surface Mount

The SCANSTA101SMX is an essential component for engineers and designers looking to enhance the testability and maintenance of their JTAG boundary-scan systems. Its robust feature set and flexible applications make it a versatile choice for a wide array of electronic products.
