Same model may have multiple batches, images only for reference.

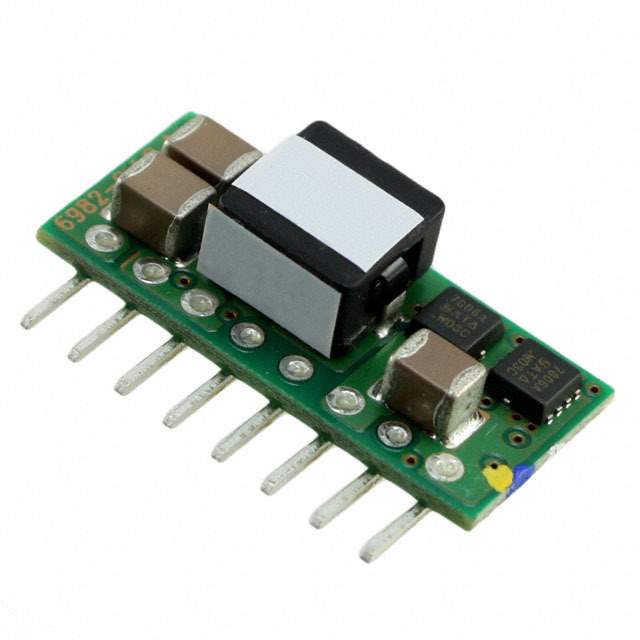

PTV12010WAH Real Image
Same model may have multiple batches, images only for reference.

PTV12010WAH

Part No PTV12010WAH
Manufacturer Texas Instruments
Catalog Power Supplies Board Mount DCDC Converters
Description REG SW 1.2-5.5V 8A VERT T/H
Datasheet
PTV12010WAH Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount
Family DC DC Converters
Manufacturer Texas Instruments
Series PTV12010
Packaging Tray
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 10.8V
Voltage - Input (Max) 13.2V
Voltage - Output 1 1.2 ~ 5.5 V
Current - Output (Max) 8A
Applications ITE (Commercial)
Features UVLO
Mounting Style Through Hole
Package 8-SIP Module
Size / Dimension 0.90" L x 0.33" W x 0.40" H (22.9mm x 8.4mm x 10.2mm)
Operating Temperature Range -40°C ~ 85°C
Efficiency 92%
Power (Watts) - Max 44W
Win Source Part Number 004488-PTV12010WAH
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PTV12010WAH CAD Model

Description

The PTV12010WAH is a high-performance, integrated module designed and manufactured by Texas Instruments, a renowned American technology company that designs and manufactures semiconductors and various integrated circuits.

  • Manufacturer: Texas Instruments
  • Module Type: Single-output, 12V to 3.3V, 10A rated, non-isolated DC-DC converter
  • Input Voltage Source: 8V to 14V
  • Output Voltage: Adjustable from 0.8V to 3.6V
  • Efficiency: Up to 96%
  • Feature: Auto-Track sequencing
  • Protective Features: Over-temperature protection and an output over-current protection
  • Feature: Under-voltage lockout
  • Package: Surface mount package
  • Features: ON/OFF inhibit control and a differential remote sense
