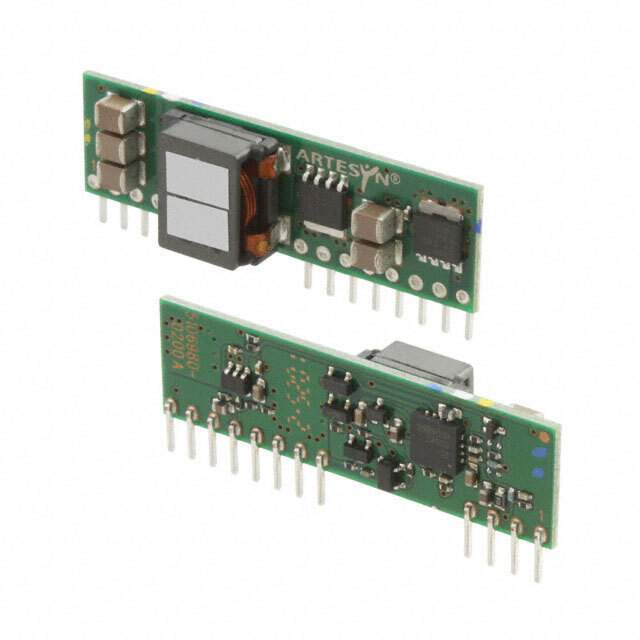

Same model may have multiple batches, images only for reference.

PTV03020WAH

Name: PTV03020WAH
Brand: Texas Instruments
SKU: 284066
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PTV03020WAH
Manufacturer	Texas Instruments
Catalog	Power Supplies Board Mount DCDC Converters
Description	MODULE PIP 3.3VIN 18A VERT 12SIP
Datasheet	PTV03020WAH Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount
Family	DC DC Converters
Manufacturer	Texas Instruments
Series	PTV03020W
Packaging	Tray
Type	Non-Isolated PoL Module
Number of Outputs	1
Voltage - Input (Min)	2.95V
Voltage - Input (Max)	3.65V
Voltage - Output 1	0.8 ~ 2.5 V
Current - Output (Max)	18A
Applications	ITE (Commercial)
Features	UVLO
Mounting Style	Through Hole
Package	12-SIP Module
Size / Dimension	1.75" L x 0.37" W x 0.50" H (44.5mm x 9.4mm x 12.7mm)
Operating Temperature Range	-40°C ~ 85°C
Efficiency	95%
Power (Watts) - Max	45W
Win Source Part Number	210350-PTV03020WAH
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian PTV03020WAH CAD Model

Alternative Products

Description

The PTV03020WAH is a high-performance, integrated module from Texas Instruments.

Manufacturer: Texas Instruments
Input Voltage Range: 2.95V to 5.5V
Output Voltage Range: Adjustable from 0.8V to 3.6V
Output Current: Up to 6A
Efficiency: Up to 96%
Feature: Auto-Track sequencing
Packaging: Advanced packaging technology
Operating Temperature Range: -40°C to 85°C
Protection Features: Over-temperature protection, output over-current protection, input under-voltage lockout
