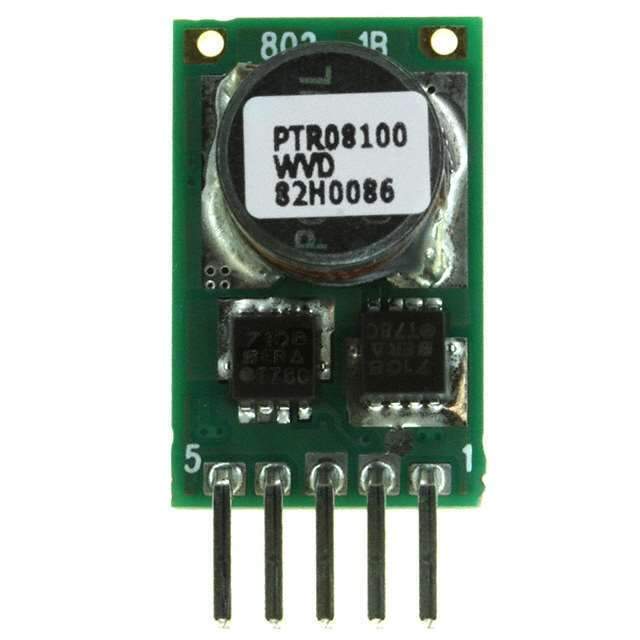

PTR08100WVD Real Image
Same model may have multiple batches, images only for reference.

PTR08100WVD

Part No PTR08100WVD
Manufacturer Texas Instruments
Catalog Power Supplies Board Mount DCDC Converters
Description REG SW 10A 14VIN ADJ-O VERT 5SIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Texas Instruments
Standard Package 80
Category Power Supplies - Board Mount
Family DC DC Converters
Series PTR08100W
Packaging Tube
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 14V
Voltage - Output 1 0.6 ~ 5.5 V
Current - Output (Max) 10A
Applications ITE (Commercial)
Features With UVLO
Mounting Style Through Hole
Package 5-SIP Module
Size / Dimension 0.41" L x 0.45" W x 0.65" H (10.4mm x 11.4mm x 16.5mm)
Operating Temperature Range -40°C ~ 85°C
Efficiency 95%
Power (Watts) - Max 55W
Catalog PTR08100W
Win Source Part Number 085407-PTR08100WVD
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PTR08100WVD CAD Model

Description

The PTR08100WVD is a highly advanced and sophisticated product from Texas Instruments, a renowned global semiconductor design and manufacturing company.

  • Type: Non-isolated adjustable switching regulator module with an integrated inductor
  • Input Voltage: 4.5V to 14V
  • Output Voltage: Adjustable from 0.6V to 5.5V
  • Output Current: Up to 10A
  • Efficiency: Up to 96%
  • Protection: Under-voltage lockout (UVLO) and over-temperature protection
  • Size: Compact size, measures just 0.5 x 0.33 x 0.15 inches
  • Weight: Light weight, weighs only 2.5g
  • Package: Surface-mount package with a vertical plug-in mounting option
  • Terminal: Solderable terminal
