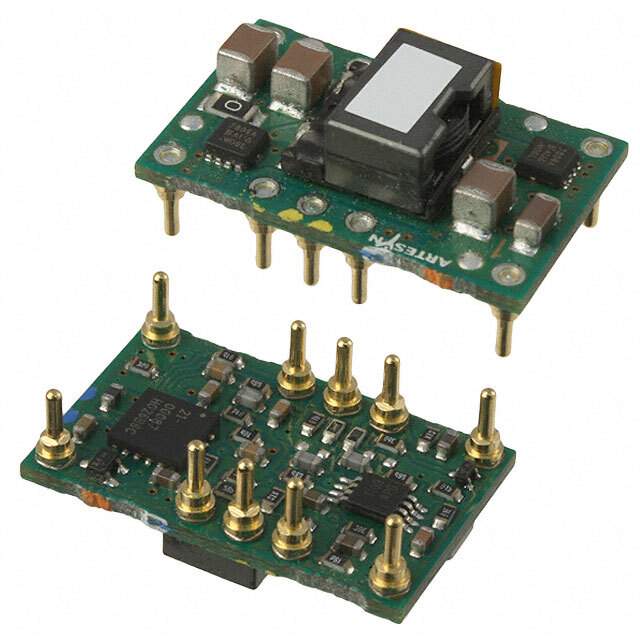

Same model may have multiple batches, images only for reference.

PTH12060LAH

Name: PTH12060LAH
Brand: Texas Instruments
SKU: 283884
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PTH12060LAH
Manufacturer	Texas Instruments
Catalog	Power Supplies Board Mount DCDC Converters
Description	MODULE PIP .8-1.8V 10A T/H 10DIP
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Texas Instruments
Standard Package	36
Category	Power Supplies - Board Mount
Family	DC DC Converters
Series	PTH12060
Packaging	Tray
Type	Non-Isolated PoL Module
Number of Outputs	1
Voltage - Input (Min)	10.8V
Voltage - Input (Max)	13.2V
Voltage - Output 1	0.8 ~ 1.8 V
Current - Output (Max)	10A
Applications	ITE (Commercial)
Mounting Style	Through Hole
Package	10-DIP Module
Size / Dimension	1.00" L x 0.62" W x 0.35" H (25.4mm x 15.7mm x 8.9mm)
Operating Temperature Range	-40°C ~ 85°C
Efficiency	88%
Power (Watts) - Max	18W
Catalog	PTH12060 Series
Win Source Part Number	081184-PTH12060LAH
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian PTH12060LAH CAD Model

Alternative Products

Description

The PTH12060LAH is an innovative, high-performance product from Texas Instruments, a globally recognized leader in the field of semiconductor technology.

Rating: 10-A
Input Voltage Range: 8V to 14V
Output Voltage: Adjustable from 0.9V to 5.5V
Feature: Auto-Track sequencing function
Protection features: Over-temperature protection, output over-current protection, and an under-voltage lockout
Package: Compact, surface-mount
