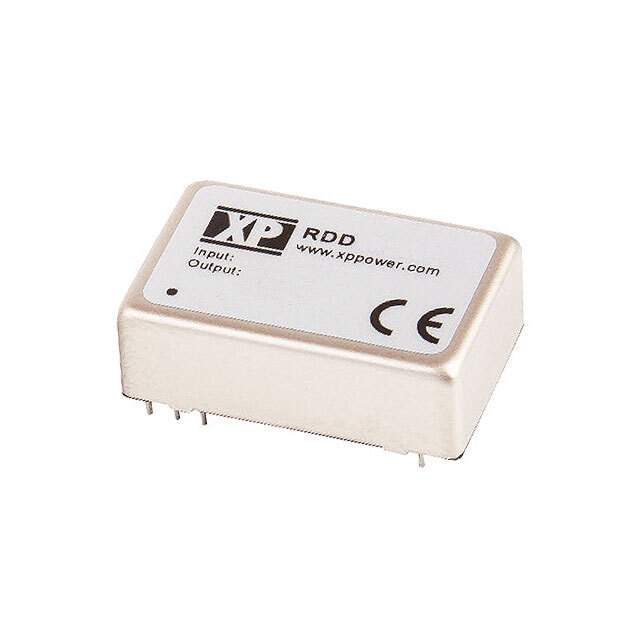

Same model may have multiple batches, images only for reference.

RDD08110S12

Name: RDD08110S12
Brand: XP Power
SKU: 1338547
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	RDD08110S12
Manufacturer	XP Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 12V 8W / Isolated Module DC DC Converter 1 Output 12V 665mA 42V - 176V Input
Datasheet	RDD08110S12 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	XP Power
Series	RDD (8W)
Package	Tube
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	42V
Voltage - Input (Max)	176V
Voltage - Output 1	12V
Current - Output (Max)	665mA
Power (Watts)	8 W
Voltage - Isolation	3 kV
Applications	Railway
Features	Remote On/Off, OCP, OVP, SCP
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	84%
Mounting Type	Through Hole
Package / Case	24-DIP Module, 8 Leads
Size / Dimension	1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Control Features	Enable, Active High
Base Product Number	RDD08110
Standard Package	10
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1338547-RDD08110S12
Ultra Librarian 3D Model	Ultra Librarian RDD08110S12 CAD Model

Alternative Products

Description

The RDD08110S12 is a DC-DC converter module manufactured by XP Power.

Application: Railway
Input Voltage: 42V to 176V
Output Power: 8W (Max)
Output: Single
Output Voltage: 12V
Output Current: 665mA
Package: Through-Hole 24-DIP Module
Leads: 8
Features: Remote On/Off, Overcurrent Protection (OCP), Overvoltage Protection (OVP), Short-Circuit Protection (SCP)
Supply and Demand Status: Limited
