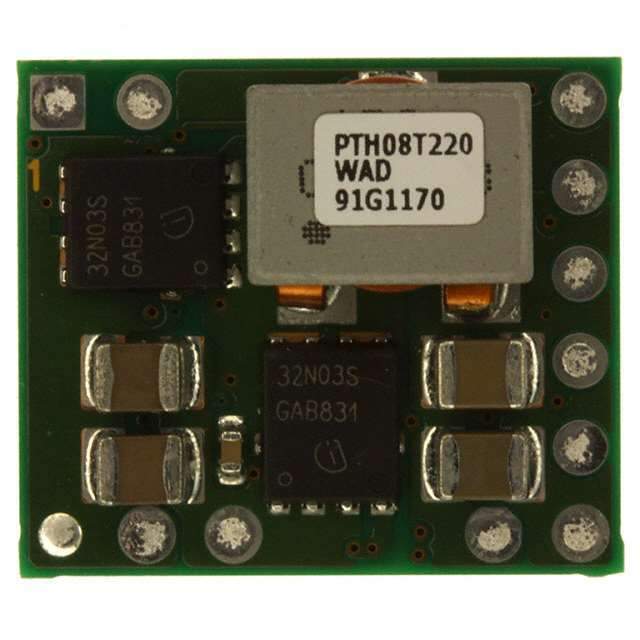

PTH08T220WAD Real Image
Same model may have multiple batches, images only for reference.

PTH08T220WAD

Part No PTH08T220WAD
Manufacturer Texas Instruments
Catalog Power Supplies Board Mount DCDC Converters
Description MODULE PIP 16A HORZ T/H 11-DIP / Module DC-DC 1-OUT 0.69V to 5.5V 16A 11-Pin DIP Module Tray
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Texas Instruments
Standard Package 42
Category Power Supplies - Board Mount
Family DC DC Converters
Series PTH08T220W
Packaging Tray
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 14V
Voltage - Output 1 0.69 ~ 5.5 V
Current - Output (Max) 16A
Applications ITE (Commercial)
Mounting Style Through Hole
Package 11-DIP Module
Size / Dimension 0.87" L x 0.75" W x 0.34" H (22.1mm x 19.1mm x 8.6mm)
Operating Temperature Range -40°C ~ 85°C
Efficiency 95%
Power (Watts) - Max 88W
Catalog PTH08T220W/221W Series
Win Source Part Number 081183-PTH08T220WAD
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name PTH08T220W
Introduction Date November 01, 2005
ECCN EAR99
Country of Origin Mexico
Halogen Free Compliant
Estimated EOL Date 2031
Ultra Librarian 3D Model Ultra Librarian PTH08T220WAD CAD Model

Description

The PTH08T220WAD from Texas Instruments is an advanced, high-performance, non-isolated power module designed to deliver high-quality, efficient power conversion.

  • Output Current: 10-A rated
  • Input Voltage Range: 4.5V to 14V
  • Output Voltage: Adjustable from 0.69V to 5.5V
  • Efficiency: Up to 95%
  • Protective Features: Overcurrent and overtemperature protection, under-voltage lockout, and auto-restart
  • Adjustable Switching Frequency: 200 kHz to 2.2 MHz
  • Differential Remote Sense: Yes
  • Size: 33 mm x 13.41 mm x 8.5 mm
  • Thermal Management: Integrated heat spreader
