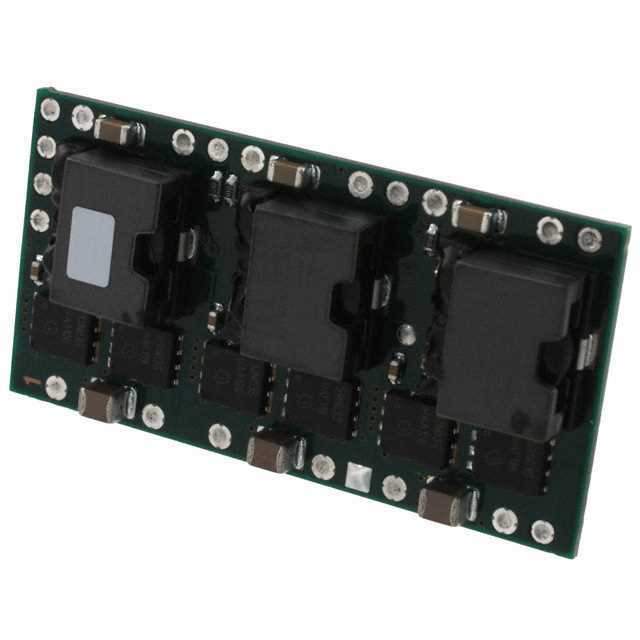

The PTH12040WAZT is a highly integrated and efficient power module from Texas Instruments, designed to offer a compact and reliable power solution for a wide range of applications. This non-isolated module is part of the PTH12040 series and is known for its exceptional performance in terms of output current and thermal management.

Key Features:

• Wide Input Voltage Range: The device operates with an input voltage range of 2.95V to 5.5V, making it versatile for various applications that require different input voltages.
• Adjustable Output Voltage: The output voltage can be adjusted from 0.8V to 3.6V, allowing for high flexibility to meet the needs of the target circuit or device.
• High Output Current: It can deliver up to 6A of continuous output current, catering to systems that demand high power.
• Efficiency: With an efficiency up to 95%, the PTH12040WAZT ensures minimal power loss and heat generation, thereby enhancing system reliability.
• Thermal Performance: The module is equipped with an integrated heat spreader that aids in effective thermal dissipation.
• Power Good Signal: The inclusion of a 'power good' signal provides a system-level indication of the output voltage status, which is crucial for power sequencing and monitoring.
• Protection Features: It includes under-voltage lockout, over-current, and over-temperature protection mechanisms to safeguard the module and the system it powers.

Applications:

The PTH12040WAZT is ideal for a variety of applications, including but not limited to:

• Telecommunications equipment
• Computing and data storage systems
• Networking infrastructure
• Industrial control systems
• Point-of-load power architectures

With its compact size, robust design, and comprehensive feature set, the PTH12040WAZT module from Texas Instruments is an excellent choice for designers looking to enhance power efficiency and performance in their systems.
