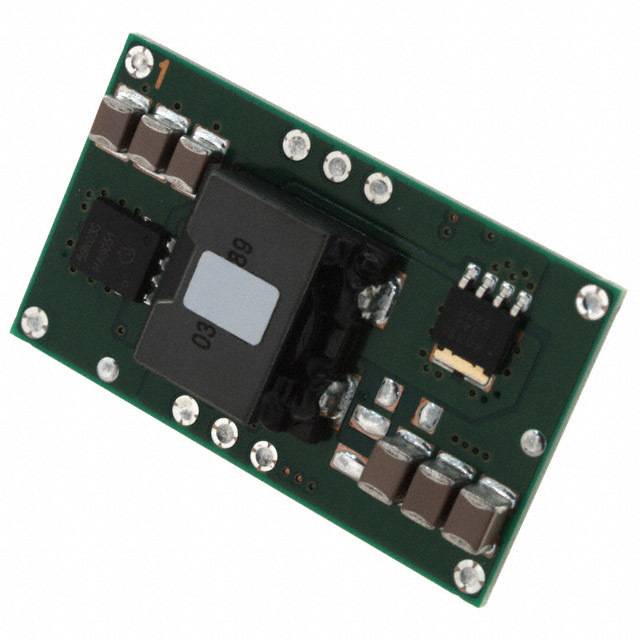

PTH12020WAZT Texas Instruments
Same model may have multiple batches, images only for reference.

PTH12020WAZT

Part No PTH12020WAZT
Manufacturer Texas Instruments
Catalog Power Supplies Board Mount DCDC Converters
Description MODULE PIP 12VIN 18A ADJ 10SMD
Datasheet
PTH12020WAZT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount
Family DC DC Converters
Manufacturer Texas Instruments
Series PTH12020
Packaging Reel(TR)
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 10.8V
Voltage - Input (Max) 13.2V
Voltage - Output 1 1.2 ~ 5.5 V
Current - Output (Max) 18A
Applications ITE (Commercial)
Features Remote On/Off, OCP, OTP, UVLO
Mounting Style SMD/SMT
Package 10-SMD Module
Size / Dimension 1.50" L x 0.87" W x 0.38" H (38.1mm x 22.1mm x 9.7mm)
Operating Temperature Range -40°C ~ 85°C
Efficiency 95%
Power (Watts) - Max 99W
Win Source Part Number 134801-PTH12020WAZT
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PTH12020WAZT CAD Model

Description

The Product PTH12020WAZT is a high-performance, 12A rated, non-isolated power module developed by Texas Instruments, a renowned global semiconductor design and manufacturing company.

  • Input Voltage Range: 8V to 14V
  • Output Voltage: Adjustable from 0.8V to 5.5V
  • Output Current: Up to 12A
  • Efficiency: Up to 95%
  • Protection features: Over-temperature protection, output over-current protection, and input under-voltage lockout
