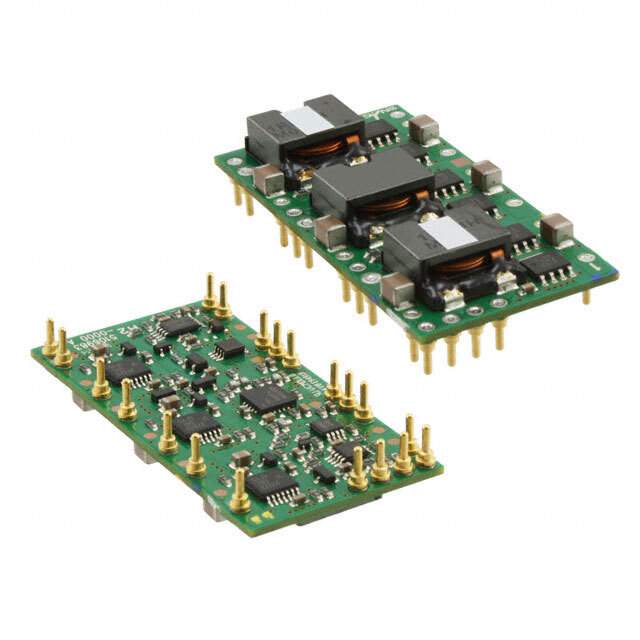

PTH12040WAH Real Image
Same model may have multiple batches, images only for reference.

PTH12040WAH

Part No PTH12040WAH
Manufacturer Texas Instruments
Catalog Power Supplies Board Mount DCDC Converters
Description MODULE PIP .8-5.5V 50A HORZ T/H
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Texas Instruments
Standard Package 12
Category Power Supplies - Board Mount
Family DC DC Converters
Series PTH12040
Packaging Tray
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 8V
Voltage - Input (Max) 14V
Voltage - Output 1 0.8 ~ 5.5 V
Current - Output (Max) 50A
Applications ITE (Commercial)
Mounting Style Through Hole
Package 20-DIP Module
Size / Dimension 2.05" L x 1.05" W x 0.36" H (52.1mm x 26.7mm x 9.1mm)
Operating Temperature Range -40°C ~ 85°C
Efficiency 96%
Power (Watts) - Max 275W
Catalog PTH12040W
Win Source Part Number 082099-PTH12040WAH
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PTH12040WAH CAD Model

Description

Product PTH12040WAH from Texas Instruments is an innovative, high-performance, non-isolated power module that offers advanced features and functionalities.

  • Input Voltage Range: 4.5V to 14V
  • Output Voltage: Up to 5.5V
  • Output Current: Up to 10A
  • Feature: Adjustable output voltage
  • Efficiency: Up to 96% @ half load
  • Feature: Auto-Track sequencing
  • Protective features: Over-temperature protection, output over-current protection, and input under-voltage lockout
  • Technology: Surface-mount
