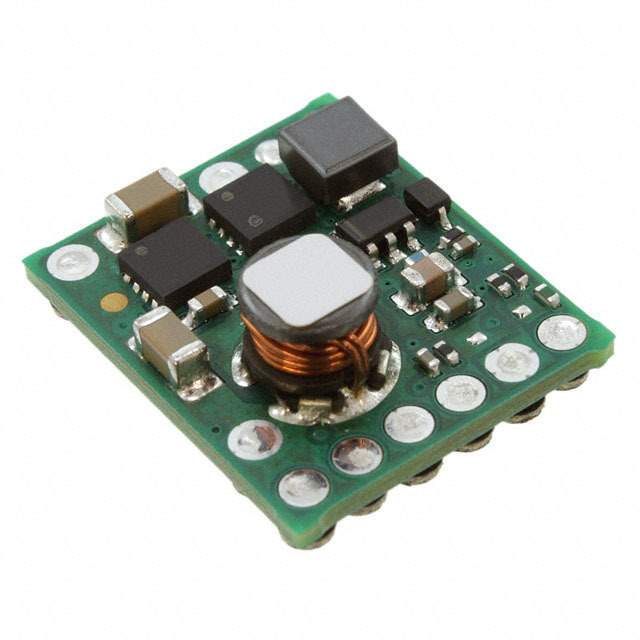

The PTH04T230WAS is a state-of-the-art power module from Texas Instruments, renowned for its compact design and high-performance capabilities. This advanced power solution is a member of the PTH series, which is known for its non-isolated power modules designed to provide efficient power conversion in a wide array of applications.

Key Features

• Input Voltage Range: The PTH04T230WAS operates with an input voltage range of 2.95V to 3.65V, making it suitable for a variety of low-voltage applications.
• Output Voltage Range: This power module offers an adjustable output voltage range from 0.7V to 2.0V, allowing for flexibility in power regulation for different circuit requirements.
• High Efficiency: With an efficiency of up to 95%, the PTH04T230WAS ensures minimal power loss and is ideal for energy-sensitive designs.
• Output Current: It is capable of delivering up to 30A of output current, providing sufficient power for demanding applications.
• Thermal Management: The module features an integrated heat sink and excellent thermal performance, ensuring reliable operation even under high load conditions.

Applications

The versatility of the PTH04T230WAS makes it an ideal choice for various applications, including but not limited to:

• Telecommunications equipment
• Computing and storage systems
• Networking infrastructure
• Industrial equipment

Advanced Technologies

Equipped with advanced technologies, the PTH04T230WAS module features Auto-Track™ sequencing which simplifies system voltage sequencing requirements. Additionally, the module incorporates Pre-Bias Startup capability, ensuring proper startup even with an existing pre-load voltage.

Reliability and Safety

Reliability is paramount in power modules, and the PTH04T230WAS does not disappoint. It includes over-current and over-temperature protection features that safeguard the module and the system it powers. Moreover, the power module is RoHS compliant, adhering to environmental standards and ensuring safety for both users and the environment.

Package and Support

The PTH04T230WAS comes in a thermally enhanced, surface-mount package that is easy to integrate into a variety of PCB designs. Texas Instruments also provides extensive technical support, including datasheets, design resources, and customer service to assist with integration and troubleshooting.
