Same model may have multiple batches, images only for reference.

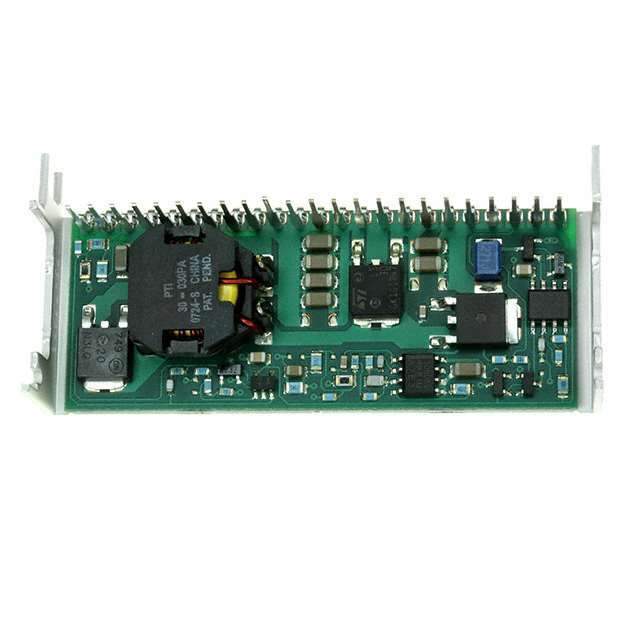

PT6931A Real Image
Same model may have multiple batches, images only for reference.

PT6931A

Part No PT6931A
Manufacturer Texas Instruments
Catalog Power Supplies Board Mount DCDC Converters
Description REGULATOR 3.3V&2.5V/1.8V HORZ / Module DC-DC 5VIN 2-OUT 3.3V/2.5V 6A/2.2A 23-Pin SIP Module
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount
Family DC DC Converters
Manufacturer Texas Instruments
Series Excalibur? PT6930
Packaging Tray
Type Non-Isolated PoL Module
Number of Outputs 2
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 3.3V
Voltage - Output 2 2.5V
Current - Output (Max) 6A, 2.2A
Applications ITE (Commercial)
Mounting Style Through Hole, Right Angle
Package 23-SIP Module
Size / Dimension 2.58" L x 1.02" W x 0.43" H (65.5mm x 25.9mm x 10.9mm)
Operating Temperature Range -40°C ~ 85°C
Efficiency 75%
Power (Watts) - Max 25.3W
Win Source Part Number 210320-PT6931A
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name PT6931
Introduction Date April 01, 2006
Country of Origin United States of America
Halogen Free Not Compliant
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian PT6931A CAD Model

Description

The PT6931A is a high-performance, integrated circuit product from the globally renowned technology company, Texas Instruments.

  • Manufacturer: Texas Instruments
  • Type: 3.3V 8A, 14-Pin SIP module
  • Mounting: Surface mounting
  • Input Voltage Range: 36V to 75V
  • Operating Temperature: -40 to +85 degrees Celsius
  • Output Voltage: Adjustable
  • Protection Features: Over-temperature and over-current protection
