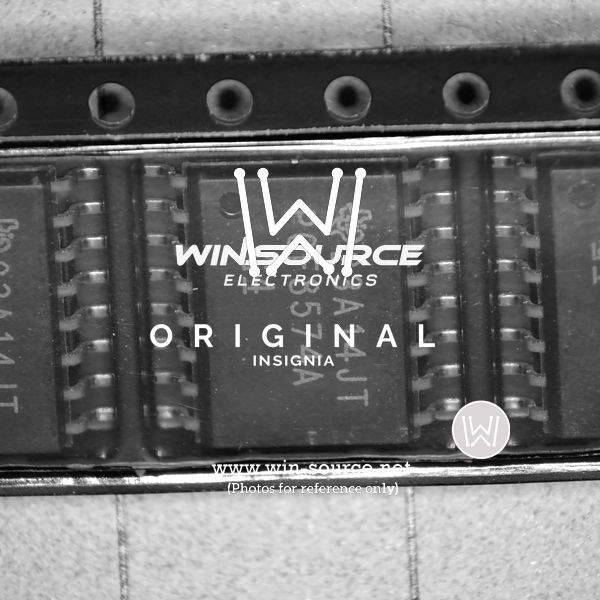

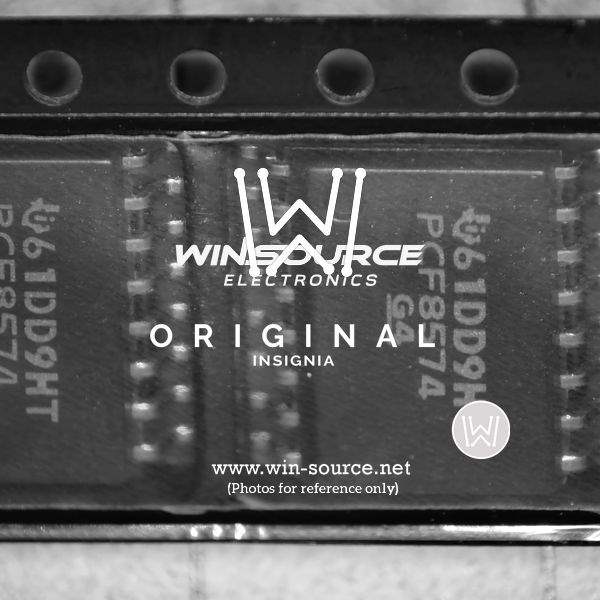

Product Overview: Texas Instruments PCF8574ADW

The PCF8574ADW is a robust I/O (Input/Output) expander from Texas Instruments, designed to provide the electronics industry with a flexible solution to interface with any microcontroller or system with an I2C-bus. This highly versatile chip allows for a significant expansion of I/O capabilities while minimizing the number of pins needed on the main controller, making it an ideal choice for applications where pin count is limited.

Key Features

• I2C Interface: The PCF8574ADW operates as an interface between the I2C-bus and parallel port expanders, enabling seamless communication with the main system.
• Eight I/O Pins: It provides eight bi-directional I/O pins, which can be independently configured as inputs or outputs, thus offering a high degree of control and flexibility.
• Interrupt Output: An interrupt output is available, which can be connected to the interrupt logic of the microcontroller. This feature allows for immediate notification of I/O changes without the need to continuously poll the expander.
• Multiple Addressing: Up to eight PCF8574ADW devices can share the I2C-bus, thanks to its built-in addressing scheme, allowing for up to 64 I/Os on the same bus.
• Low Standby Current: The device boasts a low standby current, making it suitable for battery-driven and power-sensitive applications.

Applications

The PCF8574ADW is highly adaptable and can be employed in a variety of applications, including:

• Server infrastructure
• Industrial control systems
• Home automation
• Consumer electronics
• Automotive systems

Technical Specifications

• Package: The device comes in a 16-pin SOIC package, which is suitable for surface-mount technology (SMT).
• Supply Voltage: It operates within a supply voltage range of 2.5 to 6 V, accommodating a wide array of system requirements.
• Operating Temperature: The PCF8574ADW is designed to function in a broad temperature range, making it reliable across different environmental conditions.

Overall, the Texas Instruments PCF8574ADW stands out as a practical and efficient solution for system designers looking to expand I/O capabilities without compromising on space or power consumption.
