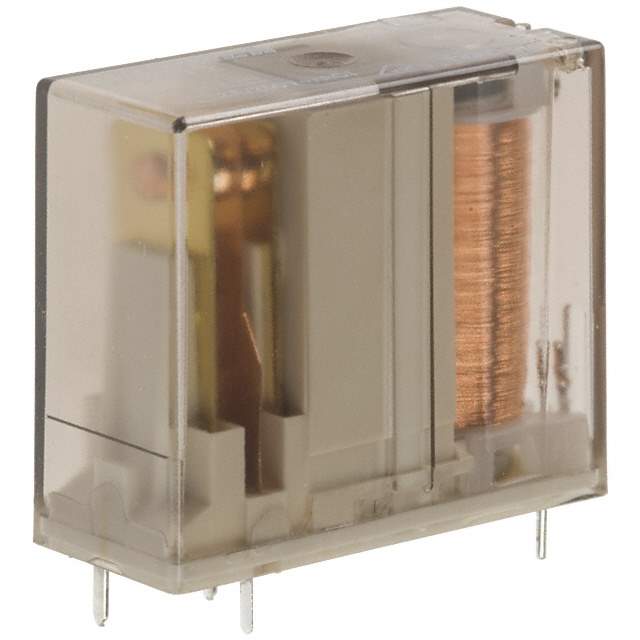

RP838012 Real Image
Same model may have multiple batches, images only for reference.

RP838012

Part No RP838012
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 12A 12V
Datasheet
RP838012 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Potter & Brumfield Relays
Packaging Tube/Rail
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 44.4mA
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 12A
Switching Voltage 400VAC - Max
Turn On Voltage (Max) 8.4 VDC
Turn Off Voltage (Min) 1.2 VDC
Operate Time 8ms
Release Time 2ms
Features Sealed - Fully
Mounting Through Hole
Termination Style PC Pin
Coil Power 500 mW
Coil Resistance 270 Ohms
Temperature Range - Operating -40°C to 70°C
Win Source Part Number 046366-RP838012
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian RP838012 CAD Model

Description

The TE Connectivity Potter & Brumfield Relays RP838012 is a general-purpose electronic component that comes with a sealed feature.

  • Contact Form: SPST-NO (1 Form A)
  • Mounting: Through Hole
  • Coil Resistance: 270 Ohms
  • Coil Current: 44.4mA
  • Operate Time: 8ms
  • Relay Type: Non-Latching
  • Coil Voltage: 12VDC
  • Contact Rating (Current): 12A
  • Switching Voltage: 400VAC - Max
  • Turn-On Voltage (Max): 8.4 VDC
  • Turn-Off Voltage (Min): 1.2 VDC
  • Release Time: 2ms
  • Coil Power: 500 mW
  • Temperature Range: -40°C to 70°C
