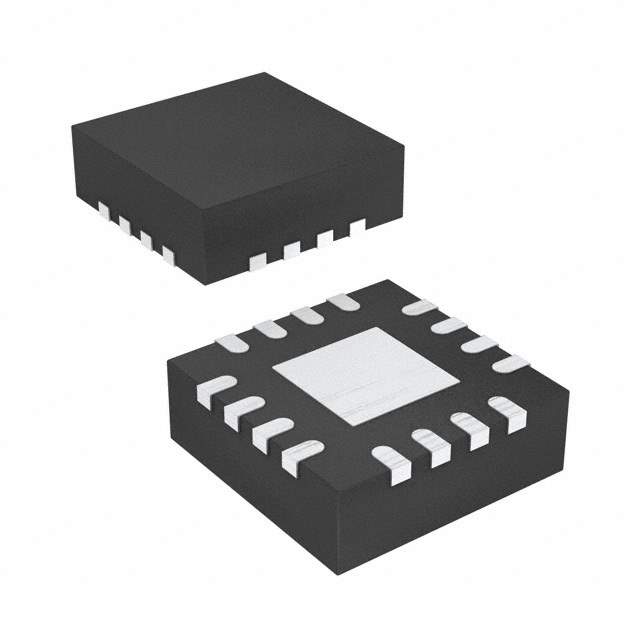

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Number of I/O 8
Interrupt Output Yes
Features POR
Output Type Push-Pull
Current - Output Source/Sink 10mA, 25mA
Max Frequency 400kHz
Supply Voltage - Operating 2.3 V to 5.5 V
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Case / Package 16-VQFN (4x4)
Win Source Part Number 026458-PCA9534ARGVR
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PCA9534ARGVR CAD Model

Description

The PCA9534ARGVR is a high-quality, advanced technology product from Texas Instruments, a leading global semiconductor company.

  • Product: PCA9534ARGVR
  • Manufacturer: Texas Instruments
  • Description: 8-bit I²C and SMBus, low power I/O (input/output) expander that includes features such as interrupt output, reset, and configuration registers
  • Power Supply: 2.3V to 5.5V
  • Function: Expand the I/O capability of any system
  • Feature: Active-low reset input
  • Feature: Open-drain interrupt output
  • Package: Compact, surface-mount VQFN (Very Thin Quad Flat No Lead) package
  • Compliance: RoHS compliant
