Product Overview: OPA2277UA/NOPB

The OPA2277UA/NOPB is a high-precision operational amplifier (op-amp) from Texas Instruments, designed to offer a perfect blend of performance and versatility for a wide array of applications. This device is part of the OPAx277 series of op-amps that are known for their low noise, high speed, and precision characteristics.

Key Features

• Low Offset Voltage: The OPA2277UA/NOPB boasts an ultra-low offset voltage of just 10 µV, which is ideal for applications requiring high accuracy and precision.
• Low Noise: With a low noise density of 0.1 µV/√Hz at 1 kHz, this op-amp ensures a clean and stable signal amplification, making it suitable for high-fidelity audio applications and sensitive instrumentation.
• Wide Supply Range: It operates over a wide supply range from ±2 V to ±18 V, or 4 V to 36 V in single-supply mode, providing flexibility in various circuit configurations.
• High Common-Mode Rejection Ratio (CMRR): The device features a high CMRR of 120 dB, which allows it to reject common-mode signals and focus on the differential input signal.
• Stable with Capacitive Loads: The OPA2277UA/NOPB is designed to be stable with capacitive loads, which is critical for maintaining performance in feedback circuits.

Applications

The OPA2277UA/NOPB is suitable for a broad range of applications, including:

• Precision instrumentation
• Data acquisition systems
• Test and measurement equipment
• Professional audio equipment
• Analog filters
• Medical devices
• Industrial process controls

Package and Quality

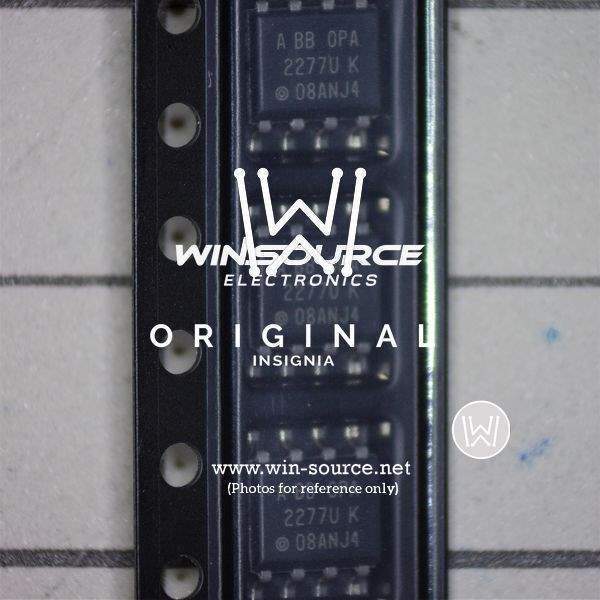

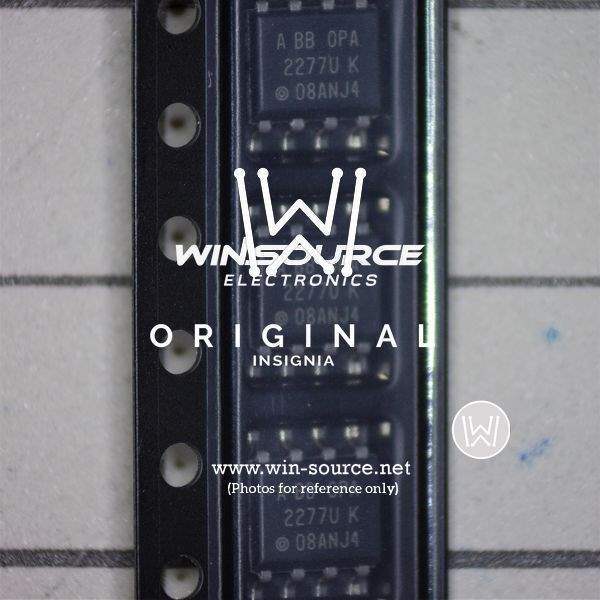

The OPA2277UA/NOPB comes in a compact SOIC-8 package, which is ideal for space-constrained applications. It features the NOPB (No Lead) designation, indicating that the product complies with RoHS standards and is free from lead, making it environmentally friendly. Texas Instruments' commitment to quality ensures that each op-amp is manufactured to the highest standards, offering reliable and consistent performance for critical applications.

With its exceptional accuracy, low noise, and flexible power requirements, the OPA2277UA/NOPB from Texas Instruments stands out as a top choice for designers seeking a high-quality operational amplifier for their next project.
