The MSP430F156IRTDR is a high-performance microcontroller unit (MCU) from Texas Instruments, designed for embedded applications requiring low power consumption and high integration. This MCU is part of the MSP430 family, which is renowned for its exceptional power efficiency and reliability. The MSP430F156IRTDR operates at a voltage range of 1.8V to 3.6V, making it an excellent choice for battery-powered and portable devices.

Key Features:

• CPU: 16-bit RISC architecture that allows for a balanced trade-off between processing power and power consumption.
• Memory: Comes with 24KB of programmable flash memory, 1KB of RAM, and 256 bytes of data EEPROM, suitable for moderate complexity applications.
• Digital I/O: Features multiple general-purpose input/output pins for interfacing with other digital components.
• Analog Capabilities: Includes a 12-bit analog-to-digital converter (ADC) with 8 channels, enabling the MCU to interface with analog sensors and devices.
• Timers: Multiple 16-bit timers support a range of functions including pulse width modulation (PWM), interval timing, and event counting.
• Communication: Equipped with versatile communication interfaces such as SPI, UART, and I2C for easy integration into a wide array of systems.
• Low Power Modes: Features several low-power modes that significantly reduce power consumption during idle or sleep states.

Applications:

The MSP430F156IRTDR is ideal for a variety of applications, including but not limited to:

• Industrial control systems
• Wireless sensors and IoT devices
• Portable medical equipment
• Energy management systems
• Consumer electronics

Package and Quality:

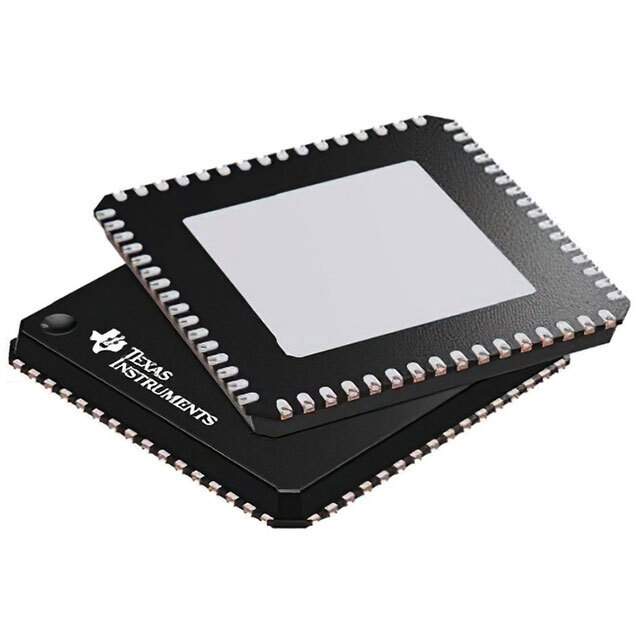

This microcontroller is available in a compact 64-pin QFN package, which is suitable for space-constrained applications. Texas Instruments is committed to maintaining high-quality standards, and the MSP430F156IRTDR is no exception, ensuring reliability and performance for critical applications.
