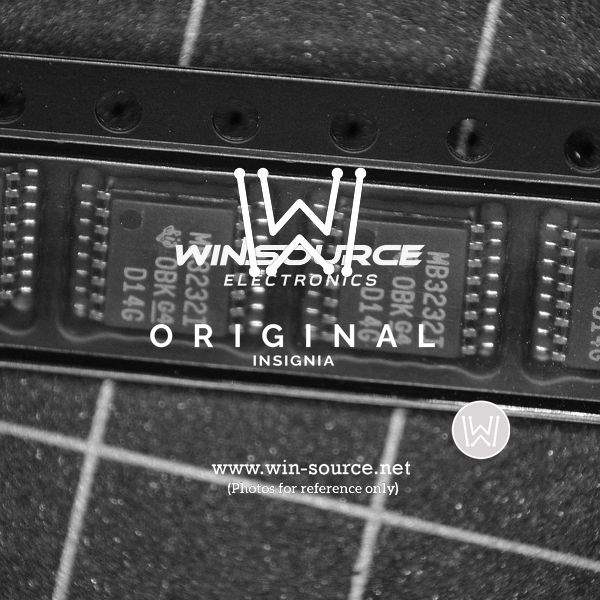

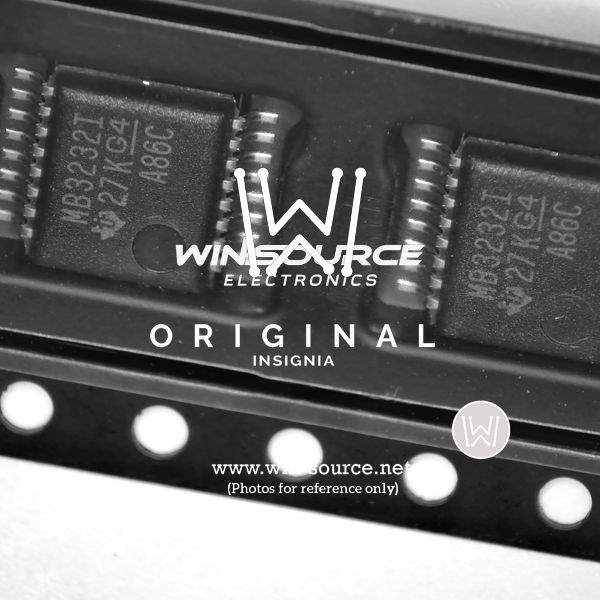

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Type Transceiver
Protocol RS232
Number of Drivers/Receivers 2/2
Duplex Full
Receiver Hysteresis 300mV
Data Rate 250kbps
Supply Voltage - Operating 3 V to 5.5 V
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Case / Package 16-TSSOP
Win Source Part Number 082989-MAX3232IPW
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian MAX3232IPW CAD Model

Description

The MAX3232IPW from Texas Instruments is a highly sophisticated, versatile, and reliable device that is designed to meet the needs of a wide range of applications.

  • Device Type: RS-232 Transceiver
  • Power Supply: Single 3.0V to 5.5V
  • Auto-Power Down Function: Yes
  • Data Rates: Up to 250kbps
  • ESD Protection: ±15kV on all signal pins (IEC 61000-4-2)
  • Drivers: 2, Short-circuit current limited, protected against excessive power dissipation
  • Receivers: 2, Can handle up to ±30V input, 3kΩ to 7kΩ input impedance
  • Package: Thin Shrink Small-Outline Package (TSSOP)
