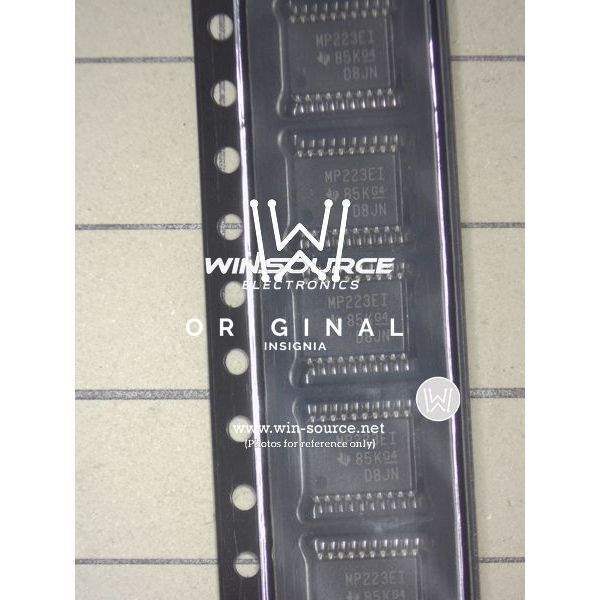

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Type Transceiver
Protocol RS232
Number of Drivers/Receivers 2/2
Duplex Full
Receiver Hysteresis 500mV
Data Rate 500kbps
Supply Voltage - Operating 3 V to 5.5 V
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Case / Package 20-TSSOP
Win Source Part Number 021485-MAX3223EIPWR
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian MAX3223EIPWR CAD Model

Description

The MAX3223EIPWR is a high-quality, reliable product manufactured by Texas Instruments, a leading global semiconductor company.

  • Product: 3-V to 5.5-V multichannel RS-232 line driver/receiver
  • Operating Voltage: 3.0-V to 5.5-V
  • Automatic Power-Down: Yes
  • Drivers: 2
  • Receivers: 2
  • ESD Protection: ±15-kV (I/O pins)
  • Data Rates: Up to 1 Mbps
  • Package: TSSOP
  • RoHS Compliant: Yes
