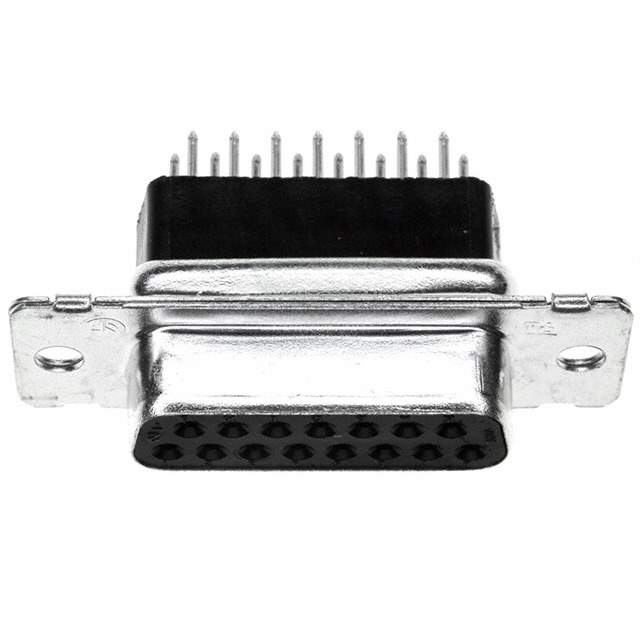

5745185-7 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub Connectors
Mfr TE Connectivity AMP Connectors
Series AMPLIMITE HDP-20
Package Tube
Connector Style D-Sub
Connector Type Receptacle, Female Sockets
Number of Positions 15
Number of Rows 2
Mounting Type Through Hole
Shell Size, Connector Layout 2 (DA, A)
Contact Type Signal
Flange Feature Housing/Shell (Unthreaded)
Termination Solder
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Contact Finish Thickness Flash
Material Flammability Rating UL94 V-0
Current Rating (Amps) 6A
Voltage Rating 125V
Color Black
Dielectric Material Polyamide (PA), Nylon, Glass Filled
Contact Material Phosphor Bronze
Temperature Range - Operating -55°C ~ 105°C
Base Product Number 5745185
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Names A34048,57451857
Standard Package 13
Win Source Part Number 1041251-5745185-7
Ultra Librarian 3D Model Ultra Librarian 5745185-7 CAD Model

Description

The 1041251-5745185-7 is a connector from TE Connectivity AMP Connectors that belongs to the category of connectors, interconnects>D-sub connectors.

  • Connector Type: Receptacle
  • Contact Gender: Female Sockets
  • Positions: 15
  • Current Rating: 6A
  • Temperature Range: -55°C to 105°C
