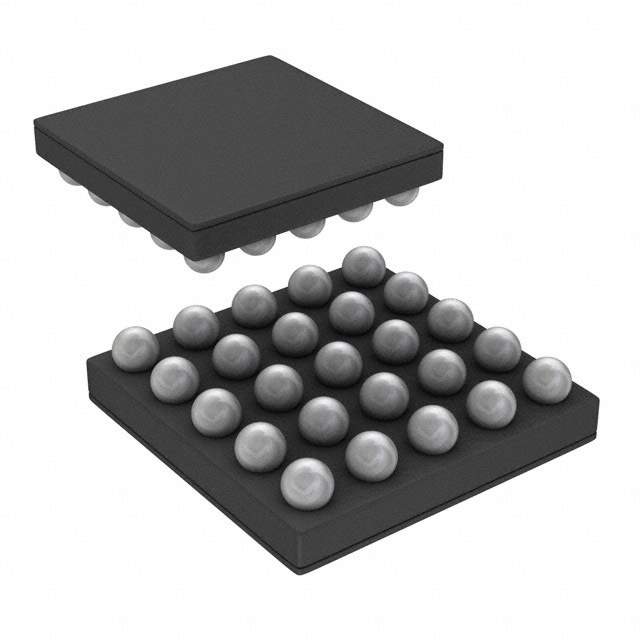

Product Overview: LP8501TME/NOPB by Texas Instruments

The LP8501TME/NOPB is a high-efficiency, multi-channel LED driver designed by Texas Instruments, catering to the needs of advanced lighting solutions. This versatile component is an ideal choice for powering complex LED arrays in a variety of applications, including smartphones, tablets, and other portable devices where efficient power management and space constraints are critical considerations.

Key Features

• Multiple LED Channels: The LP8501TME/NOPB supports nine individually controllable LED outputs, providing flexibility for various lighting configurations and designs.
• High Efficiency: With an integrated boost converter, the device ensures efficient power usage, which is essential for battery-operated devices, thus extending their operational life.
• Programmable Current: Each LED output has programmable current from 0 to 25.5 mA in 0.1 mA steps, allowing for precise brightness control and power management.
• Flexible Dimming Options: The driver supports both analog and pulse-width modulation (PWM) dimming, offering versatility in controlling the light intensity.
• I2C-Compatible Interface: The inclusion of an I2C-compatible interface ensures easy communication with microcontrollers, enabling sophisticated control schemes and diagnostics.

Advanced Capabilities

The LP8501TME/NOPB is equipped with an internal EEPROM for storing custom settings, which means that configurations can be maintained even when the device is powered off. This feature simplifies the design process and enhances user experience by allowing for the recall of preferred lighting scenarios.

Robust Protection Features

Safety is a key consideration in electronic design, and the LP8501TME/NOPB incorporates several protection features to ensure reliability. Over-voltage, over-temperature, and LED open/short-circuit protections safeguard the device and the LEDs from potential damage caused by abnormal operating conditions.

Environmentally Conscious

As an environmentally conscious product, the LP8501TME/NOPB is compliant with RoHS (Restriction of Hazardous Substances) directives, ensuring that it is free from harmful substances such as lead and mercury. This compliance reflects Texas Instruments' commitment to environmental stewardship and the production of sustainable and safe electronic components.

Overall, the LP8501TME/NOPB from Texas Instruments is a sophisticated, efficient, and reliable solution for driving LEDs in modern electronic applications, where performance and power management are of the utmost importance.
