Product Overview: LMZ10501SHX/NOPB

The LMZ10501SHX/NOPB is a nano module from Texas Instruments, designed to deliver high performance in power conversion for a wide range of applications. This compact, easy-to-use module integrates an efficient DC/DC converter with inductors, capacitors, and a power MOSFET into a small, low-profile package. The LMZ10501SHX/NOPB is part of Texas Instruments' SIMPLE SWITCHER® series, which is renowned for its simplicity and ease of use, making it an ideal solution for designers looking for a quick and reliable power management solution.

Key Features

• Input Voltage Range: The module operates over a wide input voltage range from 2.7V to 5.5V, making it suitable for a variety of supply sources, including standard 3.3V and 5V rails.
• Output Voltage: The output voltage can be adjusted from 0.8V to 3.6V, allowing for flexibility in powering different ICs and systems that require varying voltage levels.
• High Efficiency: With an integrated synchronous buck converter, the LMZ10501SHX/NOPB achieves high conversion efficiency, which is crucial for minimizing heat generation and improving system reliability.
• Output Current: It is capable of delivering up to 1A of output current, sufficient for a wide range of low-power applications.

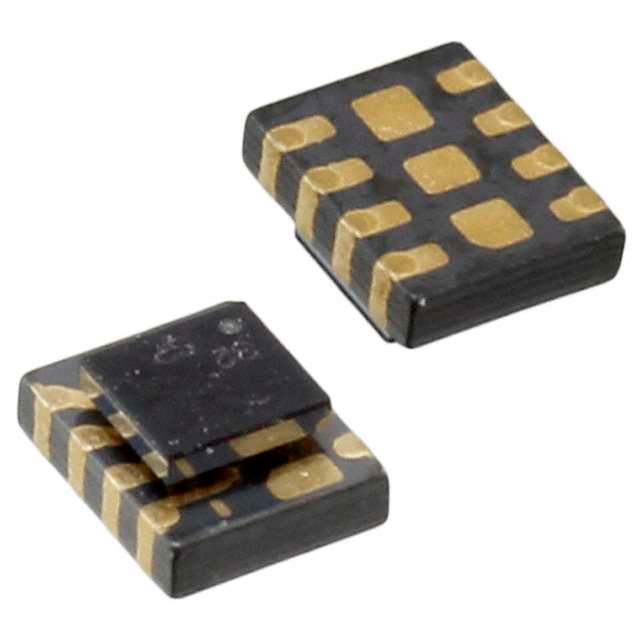

• Compact Footprint: The module comes in a tiny 2.5mm x 3mm x 1.2mm micro SMD package, saving valuable board space in space-constrained applications.
• Thermal Performance: The enhanced thermal performance ensures reliable operation even at full load and in high-temperature environments.
• Protection Features: It includes built-in features like over-temperature and over-current protection to safeguard the module and the downstream circuitry from potential damage.

Applications

The LMZ10501SHX/NOPB is versatile and can be used in various applications, including but not limited to:

• Point-of-Load conversions
• Portable and battery-powered devices
• Networking and telecommunications equipment
• Space-constrained applications

With its integrated approach, the LMZ10501SHX/NOPB simplifies the design process, reduces external component count, and shortens time to market for designers and engineers. As a reliable and efficient power solution from Texas Instruments, it stands out as an excellent choice for modern electronic systems.
