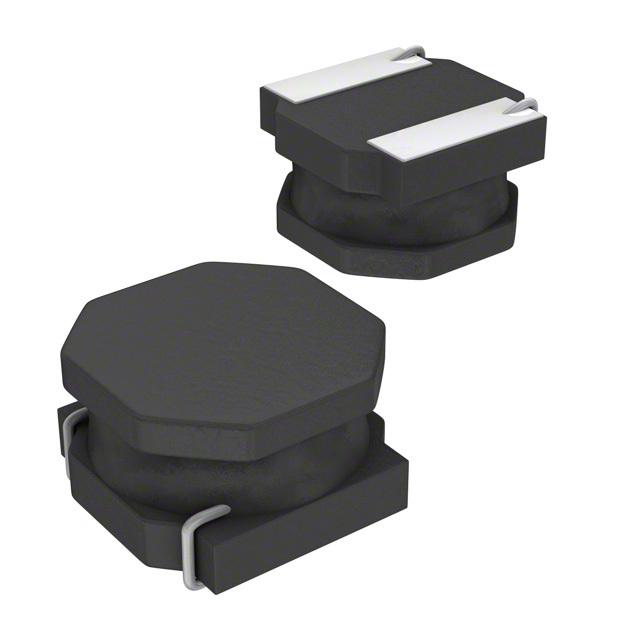

Same model may have multiple batches, images only for reference.
MDKK2020T100MM Taiyo Yuden
Same model may have multiple batches, images only for reference.

MDKK2020T100MM

Part No MDKK2020T100MM
Manufacturer Taiyo Yuden
Catalog Fixed Inductors
Description FIXED IND 10UH 630MA 690 MOHM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Taiyo Yuden
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Metal
Inductance 10μH
Tolerance ±20%
Current Rating 630mA
Current - Saturation 750mA
DC Resistance (DCR) 690 mOhm Max
Temperature Range - Operating -40°C to 125°C
Frequency - Test 1MHz
Mounting SMD (SMT)
Height - Seated (Max) 0.039" (1.00mm)
Win Source Part Number 1075744-MDKK2020T100MM
Popularity Medium
Supply and Demand Status Limited
Quantity per package 2,500
Ultra Librarian 3D Model Ultra Librarian MDKK2020T100MM CAD Model

Description

The Taiyo Yuden MDKK2020T100MM is a wirewound inductor with an inductance of 10μH and a current rating of 630mA.

  • Material: Metal Core
  • Tolerance: ±20%
  • Saturation Current: 750mA
  • DC Resistance: 690 mOhm Max
  • Frequency Self-Resonant: Not Specified
  • Frequency Test: Not Specified
  • Mounting: Surface Mountable
  • Maximum Seated Height: 0.039" (1.00mm)
  • Temperature Range: -40°C to 125°C
  • Package: Reel
  • Units Per Package: 2,500
  • Supply and Demand Status: Limited
