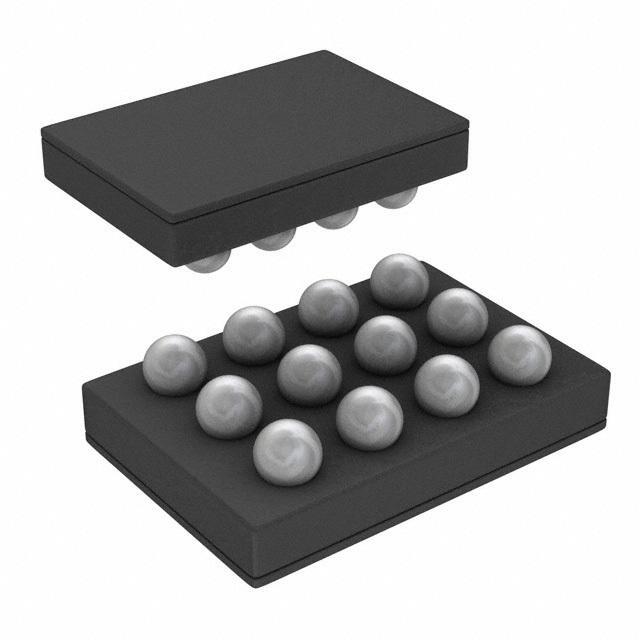

LMS4684ITLX Texas Instruments
Same model may have multiple batches, images only for reference.

LMS4684ITLX

Part No LMS4684ITLX
Manufacturer Texas Instruments
Catalog Interface - Analog Switches, Multiplexers, Demultiplexers
Description IC SWITCH DUAL SPDT 12USMD
Datasheet
LMS4684ITLX Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Switch Circuit SPDT
Number of Circuits 2
Max On Resistance 800 mOhm
Channel-to-Channel Matching (ΔRon) 1.11 mOhm
Single Supply Voltage (V+) 1.8 V to 5.5 V
Max Switch Time (Ton,Toff) 60ns, 40ns
Charge Injection 200pC
Max Leakage Current (IS off) 1nA
Crosstalk -72dB @ 100kHz
Temperature Range - Operating -40°C to 85°C (TA)
Case / Package 12-DSBGA
Win Source Part Number 082903-LMS4684ITLX
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian LMS4684ITLX CAD Model

Description

The LMS4684ITLX/NOPB from Texas Instruments is a high-performance power management IC that provides efficient power conversion with a wide input voltage range, adjustable output voltage, and high output current. It features a power-saving mode and advanced protection features like thermal shutdown, overvoltage protection, and undervoltage lockout, making it ideal for battery-powered devices and space-constrained applications.
