Same model may have multiple batches, images only for reference.

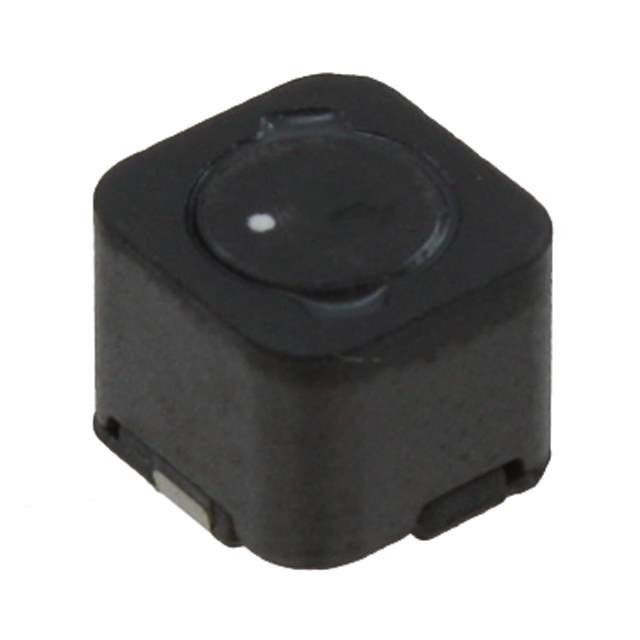

7447786008 Real Image
Same model may have multiple batches, images only for reference.

7447786008

Part No 7447786008
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description POWER-CHOKE WE-PD | FIXED IND 8.2UH 2.3A 80 MOHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Wurth Electronics Inc.
Packaging Reel
Type Wirewound
Material - Core Ferrite
Inductance 8.2μH
Tolerance ±25%
Current Rating (Amps) 2.3A
Current - Saturation 2.1A
Shielding Shielded
DC Resistance (DCR) 80mOhm Max
Frequency - Self Resonant 47MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100kHz
Mounting Style SMD
Manufacturer Package Nonstandard
Parts Dimension 0.244" L x 0.232" W (6.20mm x 5.90mm)
Height - Seated (Maximum) 0.201" (5.10mm)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1130095-7447786008
Manufacturer Homepage www.we-online.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 7447786008 CAD Model

Description

The Wurth Electronics Inc. 7447786008 is a high-quality wirewound inductor that is widely used in various electronic devices.

  • Type: Shielded
  • Inductance: 8.2μH
  • Tolerance: ±25%
  • Frequency Self-Resonant: 47MHz
  • DC Resistance: 80mOhm Max
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Fake Product Threat: 49%
  • Manufacturer: Wurth Electronics Inc.
  • Win Source Part Number: 1130095-7447786008
  • Manufacturer Homepage: www.we-online.com
