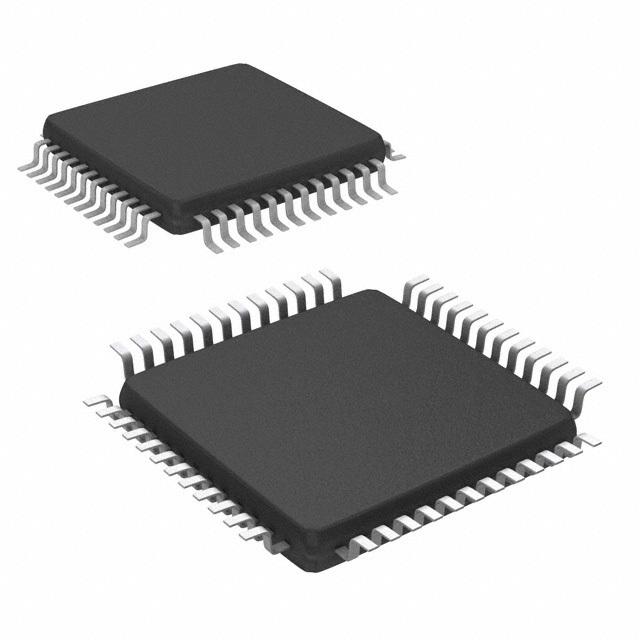

Same model may have multiple batches, images only for reference.
LMH6580VS/NOPB Texas Instruments
Same model may have multiple batches, images only for reference.

LMH6580VS/NOPB

Part No LMH6580VS/NOPB
Manufacturer Texas Instruments
Catalog Interface - Analog Switches - Special Purpose
Description IC CROSSPOINT SWITCH 8X4 48TQFP
Datasheet
LMH6580VS/NOPB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Tray
Status Active
Applications Video
Number of Channels 1
Dual Supply Voltage(V±) ±3 V to 5.5 V
-3db Bandwidth 500MHz
Features Buffered
Temperature Range - Operating -40°C to 85°C (TA)
Case / Package 48-TQFP (7x7)
Win Source Part Number 071581-LMH6580VS/NOPB
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian LMH6580VS/NOPB CAD Model

Description

The is an advanced digital cross-point switch manufactured by Texas Instruments, a renowned leader in semiconductor solutions. This high-speed device is designed to provide a seamless interface for routing digital or high-speed analog signals in a broad range of applications.

  • Channels: 16x16
  • Power Supply: Single 5V
  • Bandwidth: 350 MHz
  • Applications: Professional video and broadcast systems, medical imaging equipment, telecommunication systems
  • Signal Integrity: Differential gain of 0.02%, phase of 0.06°, and crosstalk of -83dB at 5MHz
  • Package: 64-pin TQFP
  • Compliance: RoHS compliant

The is a high-performance, versatile, and power-efficient digital cross-point switch designed to meet the stringent requirements of high-speed signal routing and distribution applications.
