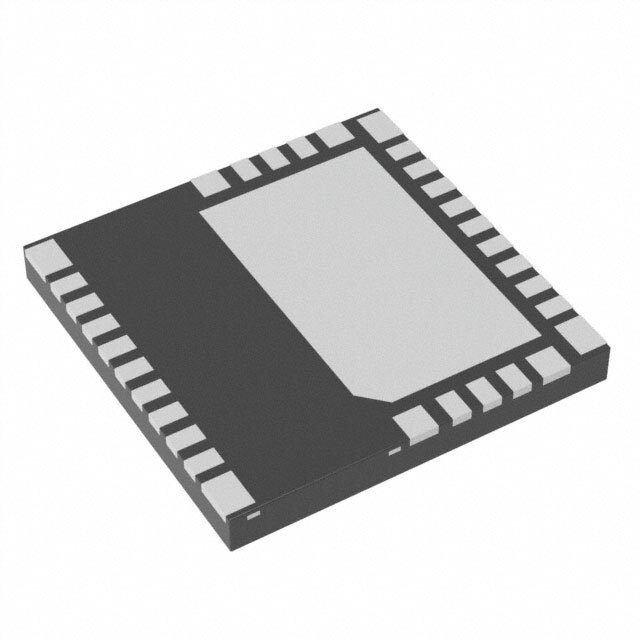

LMG3410R070RWHR - Texas Instruments

The LMG3410R070RWHR is a state-of-the-art gallium nitride (GaN) power module from Texas Instruments, designed to deliver high efficiency and fast switching performance for a wide range of power conversion applications. This innovative power module integrates a GaN power transistor with an optimized driver and protection features to provide an advanced, all-in-one solution for designers looking to improve system performance while reducing size and complexity.

Key Features:

• High Efficiency: The GaN FET technology offers lower switching and conduction losses compared to traditional silicon devices, enabling higher efficiency in power conversion systems.
• Fast Switching: With its inherent fast switching capabilities, the LMG3410R070RWHR allows for higher frequency operation, which can reduce the size of magnetic and passive components.
• Integrated Driver: The module includes a purpose-built driver optimized for GaN devices, simplifying the design process and ensuring optimal performance.
• Advanced Protection: Built-in features such as overcurrent, overtemperature, and undervoltage lockout provide robust protection for the GaN transistor, enhancing system reliability.
• Zero Reverse Recovery: GaN technology eliminates reverse recovery losses, further improving efficiency, especially in hard-switching applications.
• Low Inductance Package: The LMG3410R070RWHR comes in a low inductance package that minimizes parasitic elements, which is crucial for high-speed switching performance.

Applications:

The versatility of the LMG3410R070RWHR makes it suitable for a variety of applications, including:

• Telecom and server power supplies
• Energy storage systems
• Industrial motor drives
• Uninterruptible power supplies (UPS)
• Electric vehicle (EV) chargers
• Solar inverters

The LMG3410R070RWHR from Texas Instruments represents a significant leap forward in power electronics, providing designers with a powerful tool to create more efficient, compact, and reliable power systems for the demanding needs of modern electronics.
