Product Overview: LM8502TME/NOPB

The LM8502TME/NOPB is a highly integrated, efficient, and versatile LED driver solution designed by Texas Instruments to cater to a wide range of applications. This device is capable of driving multiple LEDs with a high level of precision, making it an ideal choice for portable and fixed lighting applications that require controlled brightness and pattern generation.

Key Features

• Driving Capability: The LM8502TME/NOPB can drive up to 9 LEDs in series, providing consistent brightness and performance. This allows designers to create complex lighting arrays for various applications.
• Programmability: With an integrated programmable flash memory, users can easily set the desired brightness levels and lighting patterns. This feature provides a high degree of customization to meet specific design requirements.
• Efficiency: The device is designed with energy efficiency in mind, featuring a low dropout voltage and high efficiency, which is critical for battery-powered applications.
• Charge Pump Technology: Utilizing a 1x/1.5x/2x charge pump, the LM8502TME/NOPB ensures optimal LED driving over a wide input voltage range, maintaining consistent lighting even as battery voltage varies.
• Protection Features: The device includes built-in over-temperature protection and short-circuit protection, enhancing the reliability and longevity of the end product.

Applications

• Smartphones and Tablets
• Portable Media Players
• Handheld Gaming Devices
• LED Backlighting for LCD Displays
• General LED Lighting Solutions

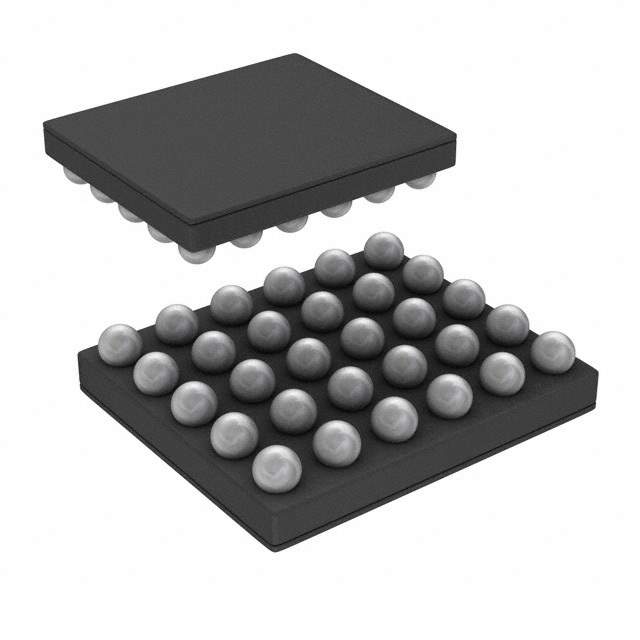

The LM8502TME/NOPB comes in a compact, lead-free package that is designed for easy integration into a variety of electronic devices. Its robust design and advanced features make it a go-to choice for engineers and designers looking to enhance their products with high-quality, controlled lighting solutions. With Texas Instruments' reputation for quality and performance, the LM8502TME/NOPB is a reliable and efficient solution for your LED driving needs.
