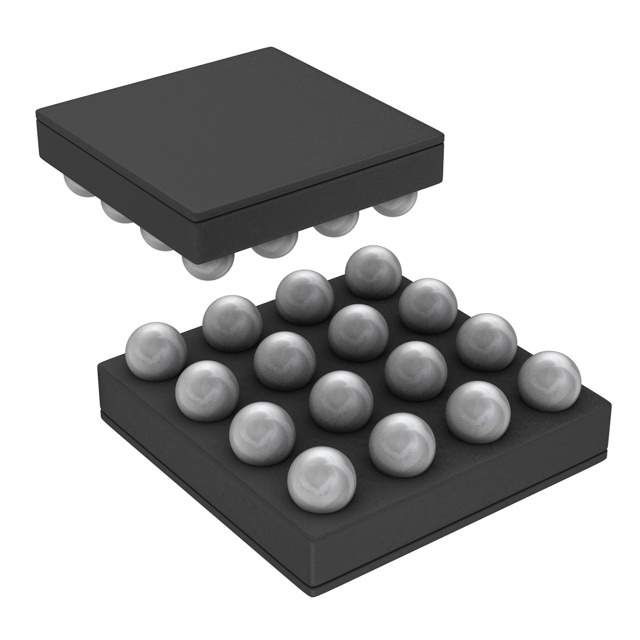

The LM8335TLE/NOPB is a versatile and high-performance Mobile I/O Companion from Texas Instruments that offers a wide array of features designed to enhance the functionality and performance of portable electronic devices. This advanced integrated circuit is a perfect solution for designers looking to expand the input/output capabilities of their systems, particularly when dealing with limited GPIOs on core processors.

Key Features

• General Purpose Input/Output (GPIO) Expansion: The LM8335TLE/NOPB provides additional GPIOs which can be programmed for various interface functions, allowing for greater flexibility in system design.
• Keypad Interface: It includes an integrated keypad interface capable of supporting up to 8x8 matrix keypads, reducing the number of GPIOs needed for keypad functionality.
• Programmable PWM Outputs: The device features programmable Pulse Width Modulation (PWM) outputs that are useful for LED control and other applications requiring variable output signals.
• Serial Interface: Communication with the host processor is made easy through a high-speed I²C serial interface, facilitating efficient data transfer and configuration.
• Low Power Consumption: Designed with power-sensitive applications in mind, the LM8335TLE/NOPB operates with low power consumption, making it ideal for battery-operated devices.
• Wide Operating Voltage Range: The device supports a broad range of operating voltages from 1.8V to 5.5V, allowing for use in various system configurations.

Applications

The LM8335TLE/NOPB is suitable for a variety of applications, particularly in the mobile and portable electronics sector. It is commonly used in smartphones, tablets, personal media players, and other handheld devices. Its ability to manage multiple inputs and outputs efficiently makes it an excellent choice for expanding the capabilities of compact systems with limited onboard resources.

Quality and Reliability

As with all Texas Instruments products, the LM8335TLE/NOPB is manufactured to high standards, ensuring reliability and performance. The device is available in a lead-free, environmentally friendly package and is characterized for operation over the industrial temperature range.
