The LM614IWMX is a sophisticated IC product from Texas Instruments, designed to cater to the demanding needs of modern electronic applications. This versatile quad operational amplifier (op-amp) integrates four independent, high-gain, internally frequency-compensated op-amps that are designed to operate from a single power supply over a wide range of voltages.

The integration of multiple op-amps into a single package makes the LM614IWMX an ideal choice for a variety of applications, including audio processing, active filters, signal conditioning, and other analog circuits. Its ability to operate on power supplies ranging from a few volts up to 36 volts (±18V dual supply) makes it highly adaptable to both battery-operated and line-powered applications.

The device features a common-mode input voltage range that includes ground, which is particularly beneficial for single-supply operations. This allows the op-amps to directly sense and amplify low-level ground-referenced signals, which is a common requirement in portable and single-supply systems. Additionally, the LM614IWMX boasts a low input bias and offset currents, which ensures minimal error in precision applications.

The output voltage range also includes ground, even when operating from a single power supply, which expands the dynamic range in single-supply applications. Moreover, the LM614IWMX is designed with an overload protection circuitry on the input and output, safeguarding the device from damage under extreme conditions.

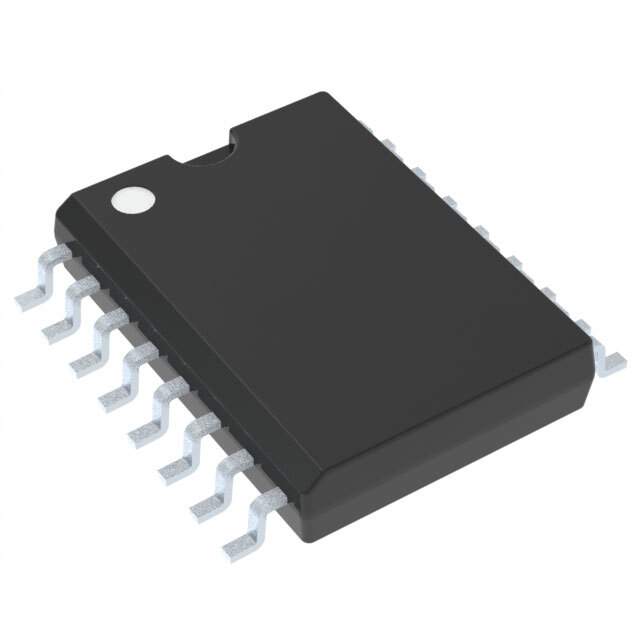

Texas Instruments has packaged the LM614IWMX in a 14-SOIC form factor, which is compact and suitable for space-constrained applications. The device also features the industry-standard pinout, which makes it an easy drop-in replacement for many other standard op-amps, facilitating easy integration into existing designs without the need for significant board rework.

In summary, the LM614IWMX from Texas Instruments is a reliable and versatile solution for a multitude of analog signal processing tasks. Its combination of features, including the ability to work with a single power supply, protection against overload, and compact packaging, makes it a smart choice for designers looking to optimize their systems for both performance and space.
