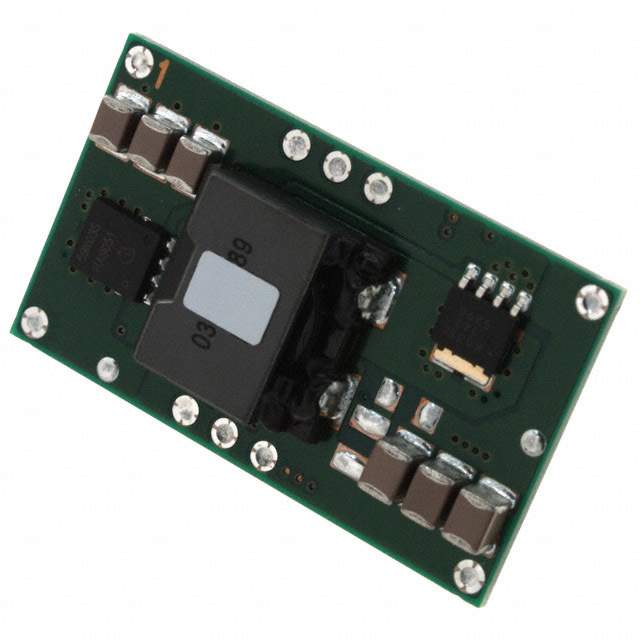

PTH12020LAZT

Name: PTH12020LAZT
Brand: Texas Instruments
SKU: 283868
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	PTH12020LAZT
Manufacturer	Texas Instruments
Catalog	Power Supplies Board Mount DCDC Converters
Description	MODULE PIP 12VIN 18A ADJ 10SMD
Datasheet	PTH12020LAZT Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount
Family	DC DC Converters
Manufacturer	Texas Instruments
Series	PTH12020
Packaging	Reel(TR)
Type	Non-Isolated PoL Module
Number of Outputs	1
Voltage - Input (Min)	10.8V
Voltage - Input (Max)	13.2V
Voltage - Output 1	0.8 ~ 1.8 V
Current - Output (Max)	18A
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OTP, UVLO
Mounting Style	SMD/SMT
Package	10-SMD Module
Size / Dimension	1.50" L x 0.87" W x 0.38" H (38.1mm x 22.1mm x 9.7mm)
Operating Temperature Range	-40°C ~ 85°C
Efficiency	89%
Power (Watts) - Max	32W
Win Source Part Number	134706-PTH12020LAZT
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian PTH12020LAZT CAD Model

Alternative Products

Description

The PTH12020LAZT from Texas Instruments is a high-performance, non-isolated power module that operates with an input voltage range of 4.5V to 14V.

Output Voltages: Adjustable from 0.9V to 5.5V
Output Current: Up to 20 Amps
Feature: Auto-Track sequencing technology
Features: Under-voltage lockout (UVLO) and over-current protection (OCP)
Package: Surface-mount
