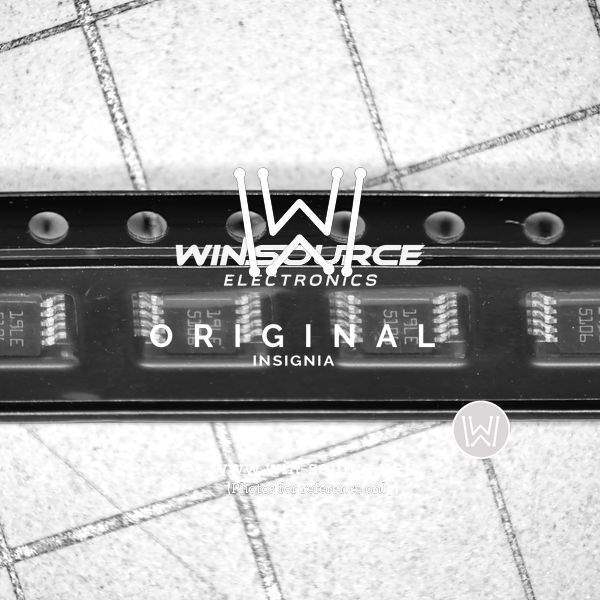

LM5106MM/NOPB Real Image
Same model may have multiple batches, images only for reference.

LM5106MM/NOPB

Part No LM5106MM/NOPB
Manufacturer Texas Instruments
Catalog PMIC - Gate Drivers
Description IC DVR HALF-BRIDGE HV 10-MSOP
Datasheet
LM5106MM/NOPB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Driven Configuration Half-Bridge
Channel Type Synchronous
Number of Drivers 2
Gate Type N-Channel MOSFET
Supply Voltage - Operating 8 V to 14 V
Logic Voltage - VIL, VIH 0.8V, 2.2V
Current - Peak Output (Source, Sink) 1.2A, 1.8A
Input Type Non-Inverting
High Side Voltage - Max (Bootstrap) 118V
Rise and Fall Time 15ns, 10ns
Temperature Range - Operating -40°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package 10-VSSOP
Win Source Part Number 019388-LM5106MM/NOPB
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LM5106MM/NOPB CAD Model

Description

The LM5106MM/NOPB is a high-performance, high-voltage gate driver designed by Texas Instruments, a renowned global semiconductor company.

  • Bootstrap Supply Voltage: 100V (maximum)
  • Operating Temperature Range: -40°C to 125°C
  • Package: 10-pin VSSOP
