Product Overview: LM5045SQ/NOPB

The LM5045SQ/NOPB is a full-featured PWM controller designed by Texas Instruments, tailored for half-bridge, full-bridge, and active clamp forward converter topologies. This versatile controller integrates all of the features necessary to implement power converters with high efficiency, excellent thermal performance, and advanced power management.

Key Features

• Integrated Functions: The device includes an oscillator, two error amplifiers, a PWM comparator, a 5V regulator, driver logic, and high current gate drivers.
• Versatile Topologies: Designed to support a range of topologies, it is suitable for various applications, including telecom, industrial, and server power supplies.
• Advanced Control: It features programmable soft-start, under-voltage lockout, and programmable switching frequency that enable flexible control over the power supply operation.
• Protection Features: The LM5045SQ/NOPB offers comprehensive protection with features like cycle-by-cycle current limit, thermal shutdown, and remote shutdown capability.

Performance and Efficiency

With its ability to operate at high frequencies, the LM5045SQ/NOPB allows for the use of smaller external components, resulting in a compact power supply design. The high-performance gate drivers ensure efficient switching, reducing power losses and improving overall efficiency.

Applications

Ideal for a broad range of power conversion applications, the LM5045SQ/NOPB is particularly well-suited for:

• Telecommunications Equipment
• Industrial Power Systems
• Server and Networking Power Supplies
• DC-DC Converters

Quality and Reliability

Texas Instruments is known for its commitment to quality, and the LM5045SQ/NOPB is no exception. It is designed to meet the stringent requirements of industrial and communication markets, ensuring long-term reliability and performance. The NOPB designation indicates that the product is lead-free and RoHS compliant, reflecting TI's dedication to environmental responsibility.

Ordering Information

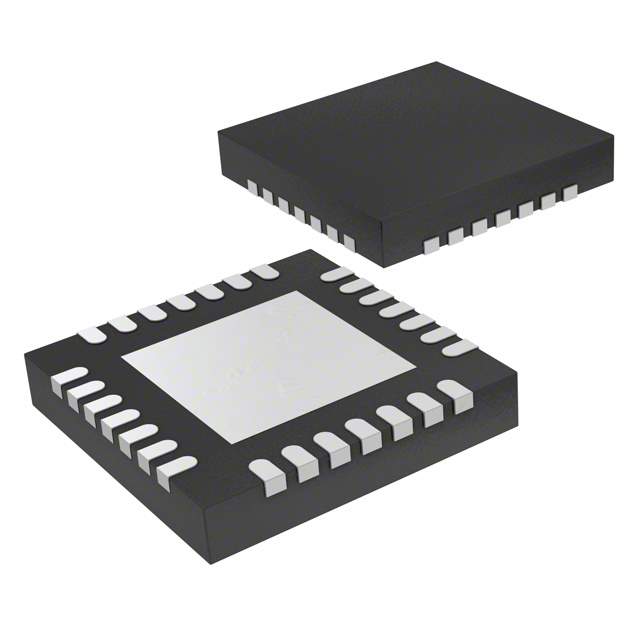

The LM5045SQ/NOPB is available in a thermally enhanced 24-lead LLP package, providing a compact and efficient solution for advanced power management systems. For pricing, samples, and detailed specifications, customers can contact Texas Instruments or authorized distributors.
