Products specifications

Case / Package TO-220
Dual Supply Voltage 28 V
Height 10.69 mm
Input Bias Current 500 nA
Input Offset Voltage (Vos) 35 mV
Length 20.02 mm
Load Impedance 8 Ω
Max Dual Supply Voltage 75 V
Max Operating Temperature 75 °C
Max Power Dissipation 4 W
Max Supply Voltage 75 V
Min Dual Supply Voltage 20 V
Min Operating Temperature -20 °C
Min Supply Voltage 20 V
Mount Through Hole
Number of Amplifiers 1
Number of Channels 2
Number of Pins 15
Output Current 5.5 mA
Power Dissipation 4 W
Power Supply Rejection Ratio (PSRR) 110 dB
Radiation Hardening No
REACH SVHC No SVHC
RoHS Compliant
Supply Type Dual
Termination Through Hole
Voltage Gain 93 dB
Width 4.5 mm
Win Source Part Number 1190463-LM4702CTA
Categories Linear - Amplifiers - Audio
Manufacturer Texas Instruments
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian LM4702CTA CAD Model

Description

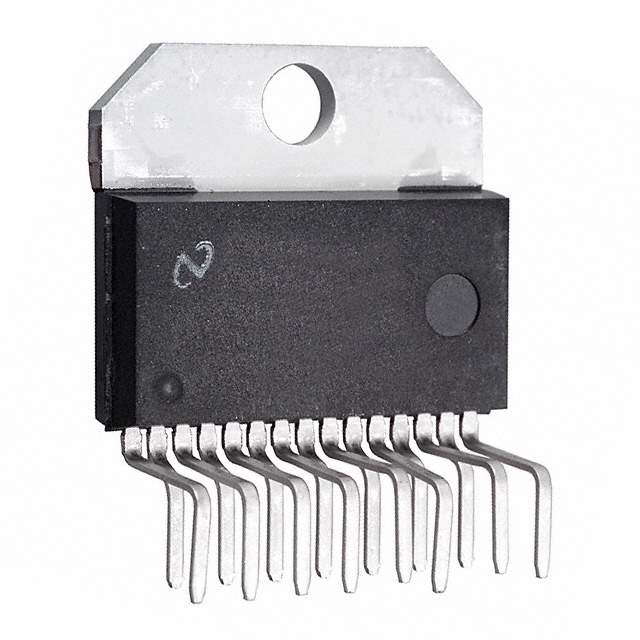

Introducing the LM4702CTA Audio Power Amplifier Driver from Texas Instruments

The LM4702CTA is a powerhouse audio amplifier driver designed by Texas Instruments, which stands at the forefront of audio technology. This remarkable component is a sterling choice for high-fidelity applications and is a perfect fit for those seeking to build their own audio amplifier with professional-grade quality.

At its core, the LM4702CTA is a stereo audio amplifier driver that operates in a Class AB mode, ensuring a superb blend of efficiency and sound quality. It is capable of driving an array of power transistors, making it highly versatile for various audio applications. Whether you are designing a home theater system, a studio monitor, or a high-end audiophile power amplifier, the LM4702CTA provides the control and finesse you need.

This driver IC is distinguished by its minimal external components requirement, which not only simplifies the design process but also contributes to a clean, uncluttered layout. It supports a wide supply voltage range, from ±20V up to ±100V, which gives designers the flexibility to tailor their amplifier's power output to specific needs. With such a broad voltage range, the LM4702CTA can be used to create amplifiers that are capable of delivering just a few watts to those that can produce several hundred watts of audio power.

The LM4702CTA also boasts an impressive slew rate and a wide bandwidth, ensuring that the audio signal is amplified with high fidelity and minimal distortion. The result is clear, accurate sound reproduction that can satisfy the ears of even the most discerning audiophiles. Additionally, the device includes built-in protection features such as over-voltage, under-voltage, and thermal shutdown, which safeguard the amplifier and the speakers from potential damage.

Encased in a TO-220 package, the LM4702CTA is designed to be easy to mount and to interface with other components in an audio amplifier design. Its lead (Pb)-free construction aligns with modern environmental standards, reflecting Texas Instruments' commitment to sustainability.

Whether you're an experienced audio engineer or an enthusiastic DIYer, the LM4702CTA from Texas Instruments offers the performance, reliability, and quality you need to create an exceptional audio amplifier.
