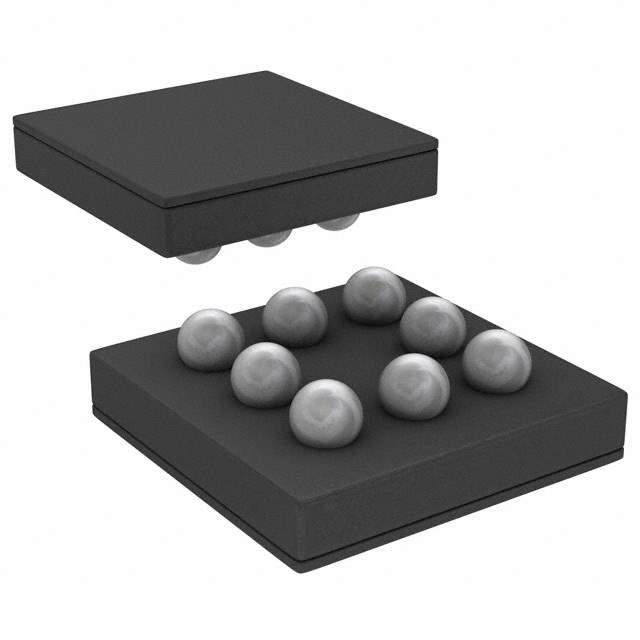

LM3501TL-16/NOPB Real Image
Same model may have multiple batches, images only for reference.

LM3501TL-16/NOPB

Part No LM3501TL-16/NOPB
Manufacturer Texas Instruments
Catalog PMIC - LED Drivers
Description IC LED DRIVER RGLTR 400MA 8USMD
Datasheet
LM3501TL-16/NOPB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Type DC DC Regulator
Topology Step-Up (Boost)
Internal Switch(s) Yes
Number of Outputs 1
Operating Input Voltage(Min) 2.7V
Maximum Supply Voltage 7V
Output Voltage 16V
Channel Output Current 400mA (Switch)
Frequency 1MHz
Applications Backlight
Temperature Range - Operating -40°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package 8-uSMD
Win Source Part Number 298849-LM3501TL-16
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian LM3501TL-16/NOPB CAD Model

Description

The LM3501TL-16/NOPB is a high-quality product manufactured by Texas Instruments, a renowned global semiconductor company that designs and manufactures analog ICs and embedded processors.

  • Type: High-efficiency, constant-frequency, step-up DC-DC converter
  • LEDs Driven: Up to 5 white LEDs in series from a Li-Ion cell or up to 16 LEDs in parallel (4 strings of 4 LEDs)
  • Output Current: Total output current of 120mA
  • Efficiency: Up to 87%
  • Switching Frequency: 1.2MHz
  • Input Voltage Range: 2.7V to 5.5V
  • Package: Compact 14-pin micro SMD package
