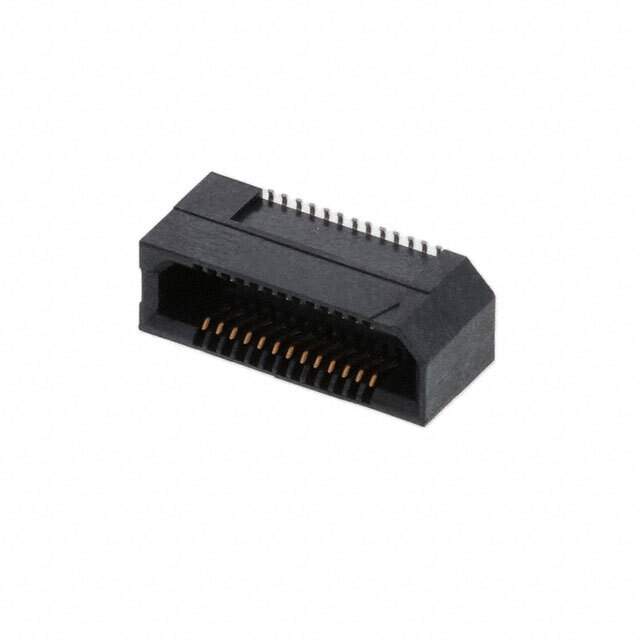

ERF8-013-07.0-L-DV-K-TR

Name: ERF8-013-07.0-L-DV-K-TR
Brand: Samtec Inc.
SKU: 1146203
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	ERF8-013-07.0-L-DV-K-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN SOCKET 26POS SMD GOLD / 26 Position Connector Socket, Outer Shroud Contacts Surface Mount Gold
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Samtec Inc.
Series	Edge Rate™ ERF8
Package	Tape & Reel
Connector Type	Socket, Outer Shroud Contacts
Number of Positions	26
Pitch	0.031" (0.80mm)
Number of Rows	2
Mounting	SMD (SMT)
Features	Board Guide, Pick and Place
Contact Finish	Gold
Contact Finish Thickness	10.0µin (0.25µm)
Mated Stacking Heights	9mm, 12mm, 15mm, 16mm, 22mm
Height Above Board	0.285" (7.24mm)
Base Product Number	ERF8-013
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	ERF8-013-07.0-L-DV-K-FR,ERF8-013-07.0-L-DV-K-TR-ND,SAM13544CT,SAM13544TR,SAM13544DKR
Standard Package	400
Win Source Part Number	1146203-ERF8-013-07.0-L-DV-K-TR
Ultra Librarian 3D Model	Ultra Librarian ERF8-013-07.0-L-DV-K-TR CAD Model

Alternative Products

Description

The Samtec Inc. ERF8-013-07.0-L-DV-K-TR is a high-density socket connector with outer shroud contacts.

Positions: 26
Pitch: 0.031 inches
Series: Edge Rate™ ERF8
Features: Board Guide and Pick-and-Place Capabilities
Contact Finish: Gold
Contact Finish Thickness: 10.0µin
Application: Mezzanine (Board-to-Board) Connections
