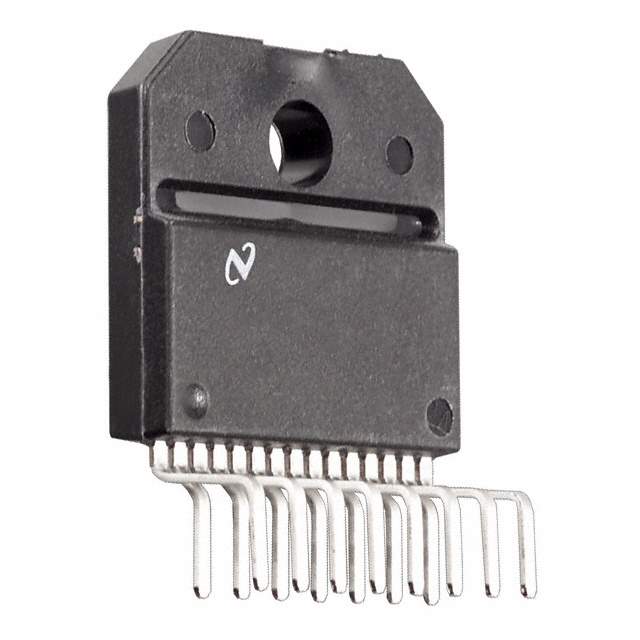

LM1876TF

Part No LM1876TF
Manufacturer Texas Instruments
Catalog Linear - Amplifiers - Audio
Description Audio Power Amplifier Series | IC AMP AUDIO PWR 22W AB TO220-15
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Tube
Status Obsolete
Type Class AB
Output Type 2-Channel (Stereo)
Max Output Power x Channels at Load 22W x 2 at 4Ohm
Supply Voltage (V) 20V ~ 64V, ±10V ~ 32V
Features Depop, Mute, Short-Circuit and Thermal Protection
Mounting Style Through Hole
Temperature Range - Operating -20°C ~ 85°C
Supplier Device Package TO-220-15 Isolated
Manufacturer Package TO-220-15 Isolated Tab, Formed Leads
Family Part Number LM1876
Manufacturer Pack Quantity 20
MSL Level 1 (Unlimited)
Win Source Part Number 1196939-LM1876TF
Manufacturer Homepage www.ti.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian LM1876TF CAD Model

Description

Product Overview: Texas Instruments LM1876TF

The LM1876TF is a high-performance audio power amplifier from Texas Instruments designed to deliver superior sound quality for a wide range of applications. This integrated circuit is part of Texas Instruments' Overture™ series and is known for its low distortion, high power output, and excellent signal-to-noise ratio, making it an ideal choice for high-fidelity audio systems.

Key Features:

  • Output Power: The LM1876TF is capable of delivering 20W per channel into 4 ohms and 15W per channel into 8 ohms, ensuring robust sound reproduction for most speaker systems.
  • Dual Channels: It features a dual-channel design, which allows for stereo audio amplification in a single IC package, simplifying the design and reducing the overall component count.
  • Low Distortion: With a Total Harmonic Distortion plus Noise (THD+N) of 0.1% or less across its audio frequency range, the LM1876TF ensures high-fidelity sound output.
  • Wide Supply Range: The amplifier operates over a wide supply voltage range from ±10V to ±30V, providing flexibility in various audio applications.
  • Protection Features: It includes built-in protection circuits such as over-voltage, under-voltage, short-circuit, and thermal protection, enhancing the reliability and longevity of the amplifier.
  • Heat Sink: The LM1876TF comes in a TO-220 package with an isolated heat sink (TF suffix), which facilitates thermal management and allows for easier mounting.

Applications:

The LM1876TF is versatile and can be used in a range of audio applications, including:

  • Home stereo systems
  • Self-powered speakers
  • Television sound systems
  • Mini and micro-component systems
  • Multi-media speakers

With its combination of high-quality audio performance, integrated protection circuits, and ease of use, the LM1876TF from Texas Instruments stands out as a reliable solution for designers and audiophiles looking to create or upgrade their audio equipment. Whether for a DIY project or commercial product, the LM1876TF brings power and clarity to the audio experience.
