Product Overview: LM1876T/NOPB Audio Power Amplifier

The LM1876T/NOPB is a powerful audio amplifier integrated circuit (IC) from Texas Instruments, designed to deliver high-quality sound with minimal external components. This IC is part of Texas Instruments' renowned audio amplifier product line, known for its reliability and performance. The LM1876T/NOPB is a dual audio power amplifier capable of delivering 20 watts per channel of continuous average power to a 4 Ohm load with less than 0.1% Total Harmonic Distortion (THD) from 20Hz to 20kHz.

Key Features

• Output Power: The LM1876T/NOPB provides 20 watts per channel into 4 Ohms, which is suitable for a wide range of audio applications.
• Low Distortion: With less than 0.1% THD across the audio spectrum, it ensures high-fidelity sound reproduction.
• Wide Supply Range: It operates on a supply voltage range from ±10V to ±30V, offering flexibility in various audio system designs.
• Protection Features: The IC includes a range of protection features such as over-voltage, under-voltage, short circuits, and thermal protection, ensuring long-term reliability.
• Mute Function: A built-in mute function allows for noise-free turn-on and turn-off transitions, which is essential for consumer electronics.

Applications

The LM1876T/NOPB is versatile and can be used in a variety of audio applications. It is ideal for high-quality stereo systems, mini component systems, compact stereo systems, self-powered speakers, and surround sound amplifiers. Its performance and features make it suitable for both consumer and professional audio equipment.

Quality and Reliability

As a product from Texas Instruments, the LM1876T/NOPB is manufactured to high standards, ensuring both quality and reliability. The "NOPB" designation indicates that the product is lead-free (No Lead), which complies with international environmental standards for electronic components.

Package and Availability

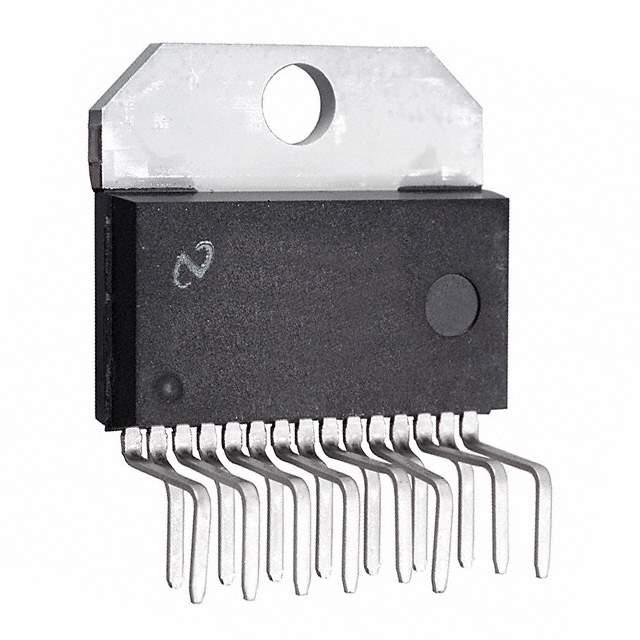

The LM1876T/NOPB comes in a TO-220 package, which is known for its ease of installation and excellent thermal performance. This package allows for efficient heat dissipation, which is critical for maintaining performance and longevity in power amplifiers. The product is widely available through Texas Instruments' distribution channels, ensuring easy accessibility for designers and manufacturers.
