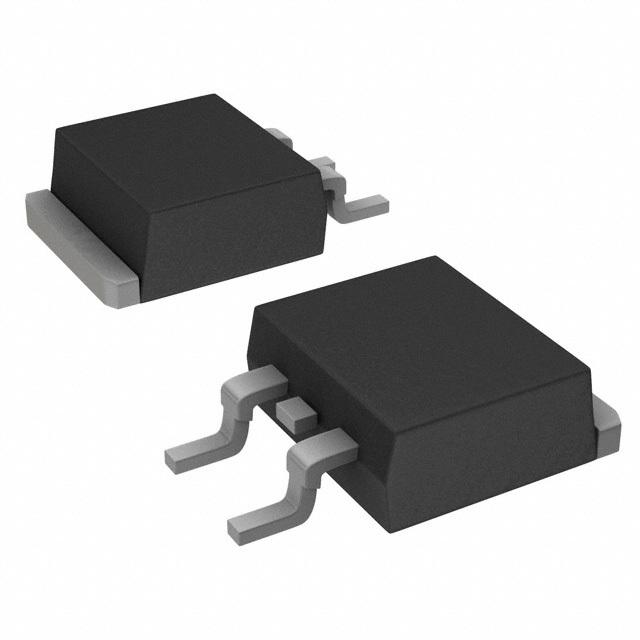

NGB8206ANTF4G Littelfuse Inc.
Same model may have multiple batches, images only for reference.

NGB8206ANTF4G

Part No NGB8206ANTF4G
Manufacturer Littelfuse Inc.
Catalog IGBTs - Single
Description IGBT 390V 20A 150W D2PAK3
Datasheet
NGB8206ANTF4G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
VCEO Maximum Collector-Emitter Breakdown Voltage 390V
Maximum Current Collector 20A
Pulsed Collector Current 50A
Collector-emitter saturation voltage(Max) 1.9V @ 4.5V, 20A
Maximum Power Dissipation 150W
Input Type Logic
Turn-on and Turn-off delay time -/5μs
Testing Conditions 300V, 9A, 1 kOhm, 5V
Temperature Range - Operating -55°C to 175°C (TJ)
Mounting SMD (SMT)
Case / Package D2PAK
Win Source Part Number 1082971-NGB8206ANTF4G
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian NGB8206ANTF4G CAD Model

Description

The NGB8206ANTF4G is an IGBT transistor manufactured by Littelfuse Inc.

  • Supply and Demand Status: sufficient
  • Design: handle high power and high voltage applications
  • Maximum Voltage: 600V
  • Maximum Current: 20A
  • Collector-Emitter Saturation Voltage: 1.9V @ 20A
  • Total Switching Energy: - joules
  • Package: D2PAK
  • Suitable Use: motor drives, power supplies, and lighting systems
