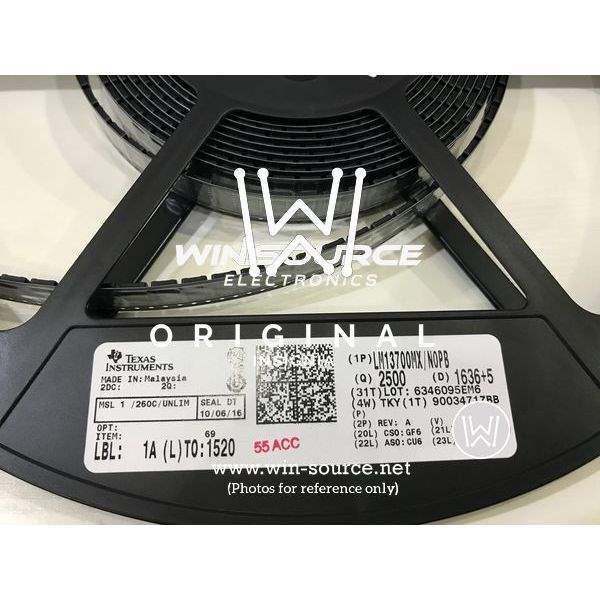

LM13700MX Texas Instruments LM13700MX Real Image LM13700MX label picture
Same model may have multiple batches, images only for reference.
LM13700MX Texas Instruments LM13700MX Real Image LM13700MX label picture
LM13700MX Texas Instruments LM13700MX Real Image LM13700MX label picture
Same model may have multiple batches, images only for reference.

LM13700MX

Part No LM13700MX
Manufacturer Texas Instruments
Catalog Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description IC OPAMP TRANSCOND 2MHZ 16SOIC
Datasheet
LM13700MX Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Amplifier Type Transconductance
Number of Circuits 2
Output Type Push-Pull
Slew Rate 50 V/μs
Gain Bandwidth Product (GBP) 2MHz
Current - Input Bias 1μA
Voltage - Input Offset 300μV
Operating Supply Current 2.6mA
Channel Output Current 650μA
Supply Voltage - Operating 10 V to 36 V, ±5 V to 18 V
Temperature Range - Operating 0°C to 70°C
Mounting SMD (SMT)
Case / Package 16-SOIC
Win Source Part Number 091647-LM13700MX
Family Name LM13700
Introduction Date November 01, 1994
Country of Origin Malaysia
Halogen Free Compliant
Estimated EOL Date 2027
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Application Field Used in Audio, Signal Processing, Clock & Timing
Ultra Librarian 3D Model Ultra Librarian LM13700MX CAD Model

Description

The LM13700MX is a versatile integrated circuit from Texas Instruments, a globally recognized leader in advanced semiconductor technology.

  • Type: Dual operational transconductance amplifier with linearizing diodes and buffers
  • Components: Two independent gain blocks
  • Gain Block Components: Operational transconductance amplifier (OTA), buffer amplifier, and a set of linearizing diodes
  • Supply Voltage Range: Wide supply voltage range
  • Temperature Stability: Excellent temperature stability
  • Slew Rate: High slew rate
  • Noise: Low noise characteristics
  • Package: Compact SOIC package
  • Compliance: RoHS compliant
