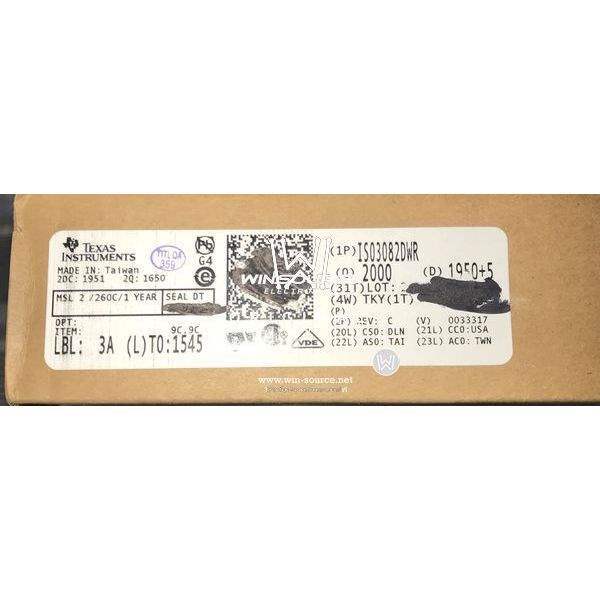

ISO3082DWRG4

Part No ISO3082DWRG4
Manufacturer Texas Instruments
Catalog Digital Isolators
Description DG ISO 2.5KV RS422/RS485 16SOIC
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Technology Capacitive Coupling
Type RS422, RS485
Isolated Power No
Number of Channels 3
Inputs - Side 1/Side 2 2/1
Channel Type Unidirectional
Isolation Voltage 2500Vrms
Common Mode Transient Immunity (Min) 25kV/μs
Data Rate 200kbps
Supply Voltage - Operating 3.15 V to 5.5 V, 4.5 V to 5.5 V
Temperature Range - Operating -40°C to 85°C
Case / Package 16-SOIC
Win Source Part Number 070208-ISO3082DWRG4
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian ISO3082DWRG4 CAD Model

Description

ISO3082DWRG4 from Texas Instruments is a digital isolator designed for applications that need signal isolation between control and field-side circuitry. Devices in this category are commonly used in industrial automation, communication interfaces, motor control systems, test equipment, and embedded designs where protecting low-voltage logic from noise, ground potential differences, or transient events is important. Engineers typically choose digital isolators to improve system robustness, simplify isolation design compared with some traditional approaches, and support reliable data transfer across isolation barriers. As a Texas Instruments part, ISO3082DWRG4 is relevant for designs that prioritize established semiconductor sourcing and industrial-grade interface solutions. The lifecycle status for this specific ordering code is information not available in the provided input, so design teams should confirm current product status directly with Texas Instruments or authorized distributors before committing to new designs or long-term builds. RoHS compliance information is also not available here and should be verified using official manufacturer documentation.
