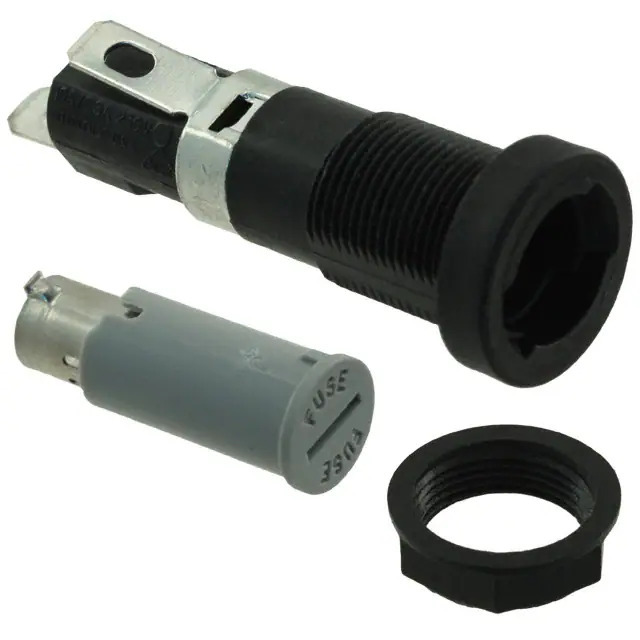

03450611H Littelfuse Inc.
Same model may have multiple batches, images only for reference.

03450611H

Part No 03450611H
Manufacturer Littelfuse Inc.
Catalog Fuseholders
Description FUSE HLDR CART 600V 20A PNL MNT / Fuse Holder 20 A 600V 1 Circuit Cartridge Panel Mount
Datasheet
03450611H Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Fuseholders
Mfr Littelfuse Inc.
Series 345
Package Bulk
Product Status Active
Mounting Type Panel Mount
Fuse Size 0.25" Dia x 1.26" L (6.35mm x 32mm)
Current Rating (Amps) 20 A
For Use With/Related Products 3AG, 1/4" x 1-1/4" (SFE-20)
Fuse Type Cartridge
Fuseholder Type Holder
Number of Circuits 1
Voltage 600V
Orientation -
Termination Style Quick Connect - 0.187" (4.7mm)
Contact Material Brass
Contact Finish Tin
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.8180
Win Source Part Number 1361511-03450611H
Ultra Librarian 3D Model Ultra Librarian 03450611H CAD Model

Description

The 345 series fuseholder from Littelfuse Inc. is a panel mount holder designed for use with 3AG, 1/4" x 1-1/4" (SFE-20) fuses.

  • Current Rating: 20A
  • Voltage Rating: 600V
  • Termination Style: Quick Connect, 0.187" (4.7mm)
  • Contact Material: Brass
  • Contact Finish: Tin
  • Mounting: Panel Mount
