ISO1540QDRQ1 - Low-Power Bidirectional I2C Isolator

The ISO1540QDRQ1 from Texas Instruments is a robust, low-power, bidirectional I2C isolator designed to provide bidirectional isolation for I2C communication systems in automotive and industrial applications. This device is particularly well-suited for systems where noise immunity and signal integrity are critical.

Key Features

• High Isolation: With a minimum isolation voltage of 2500 Vrms for 1 minute, this device ensures that electronic systems are protected from high voltage spikes and transients.
• Low Power Consumption: The ISO1540QDRQ1 operates with a low power consumption, making it ideal for energy-sensitive applications.
• Robust Data Transfer: It supports bidirectional I2C communication at speeds up to 1 Mbps, ensuring reliable data transfer even in harsh environments.
• Fail-Safe Design: The device includes a fail-safe design that prevents unintended communication in the event of power loss or system faults.
• Wide Operating Temperature Range: Suitable for automotive applications, it operates over a wide temperature range from -40°C to +125°C.
• Quality and Reliability: As a part of Texas Instruments' automotive-grade product offerings, the ISO1540QDRQ1 is designed to meet stringent quality and reliability standards.

Applications

• Automotive systems such as infotainment and advanced driver assistance systems (ADAS)
• Industrial automation and control systems
• Medical equipment requiring electrical isolation
• Any system requiring protection from electrical noise and signal integrity issues

Product Specifications

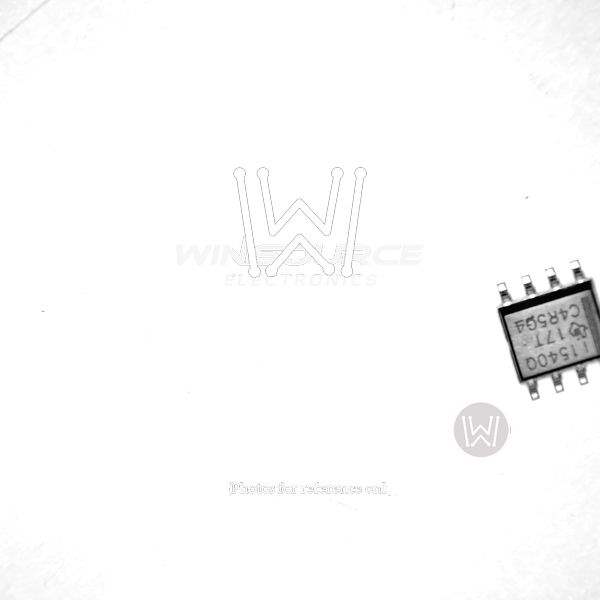

The ISO1540QDRQ1 is available in a compact SOIC-8 package, making it suitable for space-constrained applications. Its advanced features and reliability make it an excellent choice for designers looking to improve the safety and performance of their I2C communication systems.
