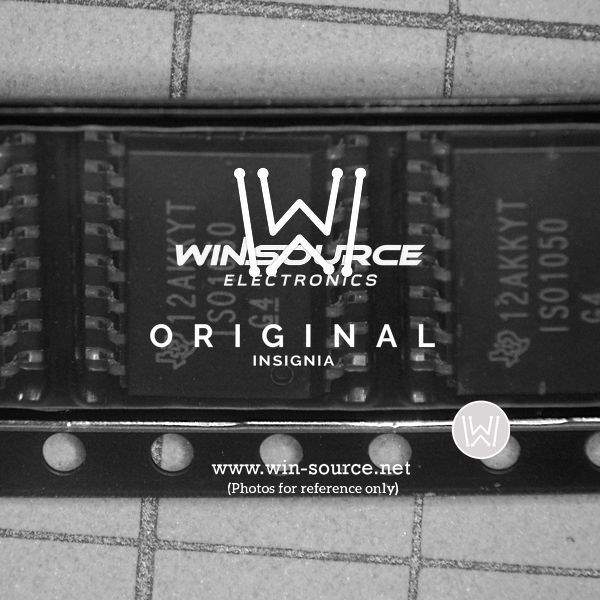

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits(ICs)
Family Interface - Drivers,Receivers,Transceivers
Manufacturer Texas Instruments
Win Source Part Number 285739-ISO1050
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Automation & Process Control, Medical, Security, Communications & Networking, Automotive
Ultra Librarian 3D Model Ultra Librarian ISO1050 CAD Model

Description

The ISO1050 from Texas Instruments (TI) is a state-of-the-art isolated CAN (Controller Area Network) transceiver that serves as an interface between a CAN protocol controller and the physical two-wire CAN bus.

  • Isolation voltage rating: Up to 5000 VRMS, per UL 1577
  • Loop delay: Less than 150ns
  • Data rates: Up to 1 Mbps
  • Feature: Fail-safe receiver
  • Operating temperature range: -40°C to +125°C
  • Package: 8-pin SOIC
  • Logic side power supply: Single 5V
  • Isolated bus-side power supply: 5V or 3.3V (not provided)
