Product Overview: EK-TM4C123GXL - Texas Instruments

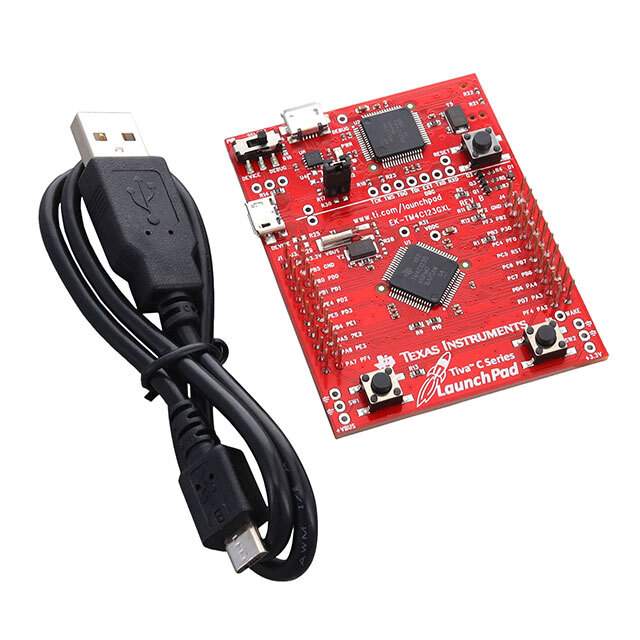

The EK-TM4C123GXL, also known as the Tiva C Series TM4C123G LaunchPad, is a highly capable microcontroller evaluation platform from Texas Instruments (TI). This LaunchPad is designed to provide a quick and easy way for engineers, students, and hobbyists to explore the capabilities of the TM4C123GH6PM microcontroller, which is at the heart of the board.

The TM4C123GH6PM microcontroller features a 32-bit ARM Cortex-M4F core, which includes a floating-point unit (FPU) for efficient computation of complex operations. With a clock speed of up to 80 MHz, 256KB of flash memory, and 32KB of SRAM, this microcontroller is well-suited for a variety of applications, including industrial control, motor drives, medical instrumentation, and home automation.

The EK-TM4C123GXL LaunchPad comes equipped with a range of features to facilitate development, such as:

• Two user LEDs and two push buttons for input/output interfacing, along with a reset button.
• An RGB LED for PWM experiments and user feedback.
• A set of stackable headers providing access to a variety of communication interfaces, including I2C, SPI, UART, and CAN, as well as GPIO pins.
• An integrated In-Circuit Debug Interface (ICDI) which allows for programming and debugging of the onboard microcontroller without the need for additional hardware.
• USB connectivity for both debugging and power supply purposes.
• Support for BoosterPack plug-in modules, which expand the functionality of the board with additional features such as wireless modules, sensor systems, and display interfaces.

The EK-TM4C123GXL is supported by comprehensive software examples within TI’s TivaWare for C Series software package. This includes libraries for peripherals, USB support, and real-time operating system (RTOS) integration. The board is also compatible with various integrated development environments (IDEs) such as TI’s Code Composer Studio and ARM’s Keil, as well as being supported by the Energia open-source electronics prototyping platform, which is similar to the Arduino IDE.

With its rich set of features and extensive support, the EK-TM4C123GXL LaunchPad is an excellent tool for both education and professional development, allowing for rapid prototyping and a seamless transition from concept to production.
