Introducing the DS36954VX Multipoint-LVDS Transceiver from Texas Instruments

The DS36954VX is a cutting-edge multipoint-Low Voltage Differential Signaling (M-LVDS) transceiver designed by Texas Instruments, a leader in semiconductor solutions. This product is an ideal choice for applications that require high-speed data transmission over controlled impedance media of approximately 100 ohms. The device is designed to operate at speeds of up to 200 Mbps (100 MHz), making it perfect for demanding applications in telecommunications, computing, and networking.

The DS36954VX transceiver includes four line drivers and four line receivers. It complies with the TIA/EIA-899 standard for Multipoint-LVDS. The transceiver's M-LVDS interface provides a robust, low-emission data transmission standard that is both power-efficient and capable of supporting long cable lengths.

One of the key features of the DS36954VX is its high reliability in adverse environments. It is characterized for operation from -40°C to 85°C, making it suitable for industrial applications where extreme temperatures are common. Additionally, the device's integrated fail-safe circuitry ensures a known state in the absence of an input signal, enhancing system safety and reliability.

The DS36954VX boasts a tri-state mode for the driver outputs and receiver inputs, which is useful for multipoint applications. This feature allows for the connection of up to 32 transceivers on a single bus without causing excessive loading. Furthermore, the device's low voltage differential signaling provides low power consumption and minimizes EMI, which is critical for maintaining signal integrity in dense electronic environments.

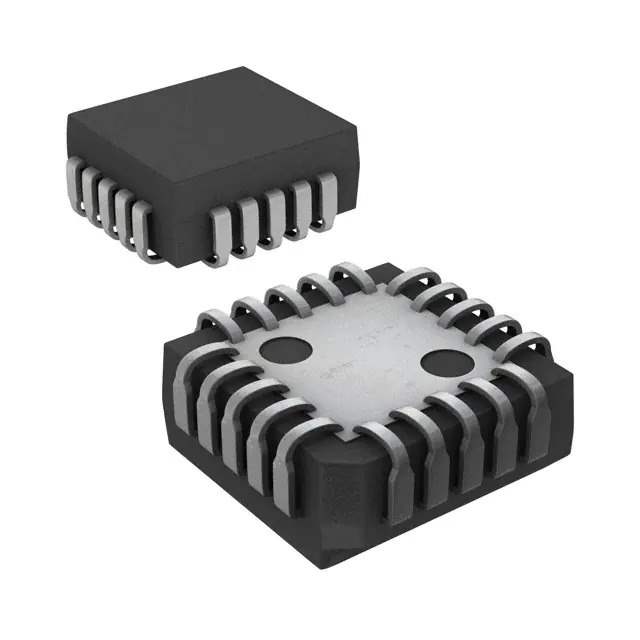

With its small footprint, the DS36954VX is available in a compact package, making it suitable for space-constrained applications. The product is also RoHS compliant, adhering to environmental standards that restrict the use of hazardous substances in electronic equipment.

Overall, the DS36954VX from Texas Instruments represents a robust solution for designers looking to implement a reliable, high-speed data transmission system with multipoint capabilities. Its combination of speed, reliability, and power efficiency makes it an excellent choice for a wide range of applications in today's technology-driven world.
