Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - Motor Drivers, Controllers
Mfr Texas Instruments
Series -
Package Tape & Reel
Product Status Active
Motor Type - Stepper Bipolar
Motor Type - AC, DC Brushed DC
Function Driver - Fully Integrated, Control and Power Stage
Output Configuration Half Bridge (2)
Interface PWM
Technology Power MOSFET
Step Resolution -
Applications Consumer, Industrial
Current - Output 2.5A
Voltage - Supply 0V ~ 5.5V
Voltage - Load 4.5V ~ 33V
Temperature Range - Operating -40°C ~ 125°C (TA)
Mounting Type Surface Mount

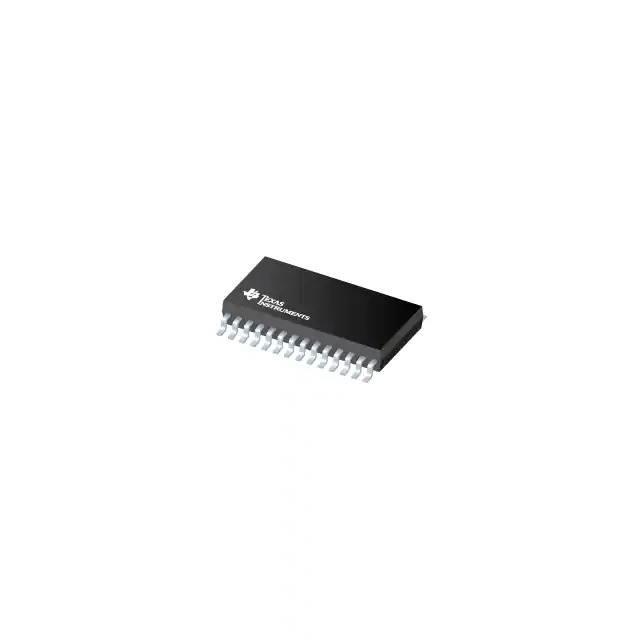

Package / Case 28-PowerTSSOP (0.173", 4.40mm Width)
Supplier Device Package 28-HTSSOP
Base Product Number DRV8424
MSL Level 3 (168 Hours)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1372112-DRV8424PPWPR
Ultra Librarian 3D Model Ultra Librarian DRV8424PPWPR CAD Model

Description

DRV8424PPWPR Motor Driver by Texas Instruments

The DRV8424PPWPR is a state-of-the-art motor driver integrated circuit (IC) designed and manufactured by Texas Instruments (TI), a leader in semiconductor solutions. This advanced motor driver IC is specifically engineered to deliver exceptional performance for a wide range of motor control applications.

Key Features

  • High-Performance Motor Control: The DRV8424PPWPR is capable of driving a variety of motors including stepper, brushed DC, and other types. It provides precise control that is essential for applications requiring accuracy and efficiency.
  • Versatile Power Management: With an operating voltage range from 4.5V to 45V, this driver is versatile enough to accommodate a broad spectrum of motor control applications, from low-voltage to more power-intensive tasks.
  • Integrated Protection Features: TI has incorporated multiple protection features such as overcurrent, overtemperature, and undervoltage lockout, which ensure the longevity and reliability of both the motor and the driver.
  • Advanced Diagnostics: The DRV8424PPWPR includes a diagnostics interface that provides real-time feedback on the status of the motor and driver, aiding in the prompt identification and resolution of issues.

Applications

The DRV8424PPWPR is ideally suited for a variety of applications where precise motor control is required. These include, but are not limited to:

  • Automated industrial machines
  • Robotics and automated guided vehicles (AGVs)
  • Consumer electronics
  • Office automation equipment

Technical Specifications

The DRV8424PPWPR comes in a PowerPAD™ HTSSOP package, which is designed to enhance thermal performance. The package is RoHS compliant and designed for surface mount technology (SMT) assembly processes. For detailed technical specifications, designers and engineers should refer to the official Texas Instruments datasheet for the DRV8424PPWPR.

Overall, the DRV8424PPWPR from Texas Instruments represents a robust and flexible solution for advanced motor control applications, offering the performance, protection, and diagnostic capabilities that today's innovative projects demand.
