Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded - FPGAs (Field Programmable Gate Array)
Mfr Intel
Series Cyclone® 10 LP
Package Tray
Number of LABs/CLBs 645
Number of Logic Elements/Cells 10320
Total RAM Bits 423936
Number of I/O 101
Voltage - Supply 1.2V
Mounting SMD (SMT)
Temperature Range - Operating -40°C ~ 100°C (TJ)

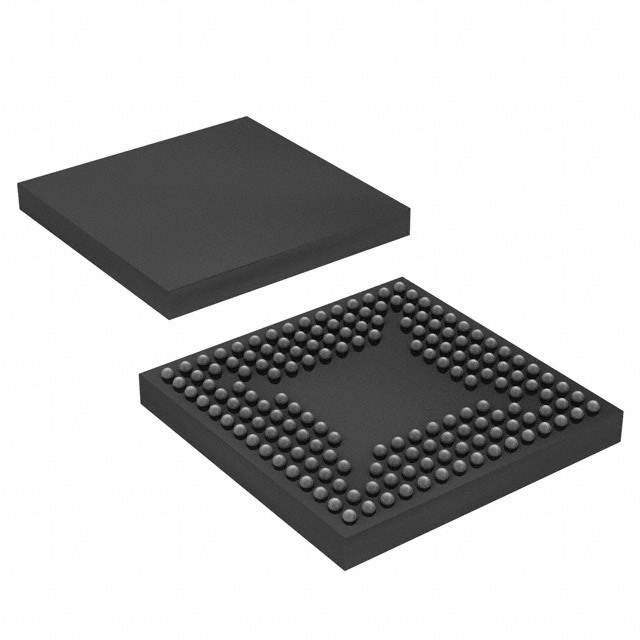

Package / Case 164-TFBGA
Supplier Device Package 164-MBGA (8x8)
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names 968086,544-3378
Standard Package 348
Win Source Part Number 1163944-10CL010YM164I7G
Ultra Librarian 3D Model Ultra Librarian 10CL010YM164I7G CAD Model

Description

The Cyclone® 10 LP is an integrated circuit (IC) that belongs to the Embedded - FPGAs (Field Programmable Gate Array) category. This IC is manufactured by Intel.

  • Category: Embedded - FPGAs (Field Programmable Gate Array)
  • Win Source Part Number: 1163944-10CL010YM164I7G
  • Package: Tray
  • Standard Package: 348
  • Mounting: SMD (SMT)
  • I/O: 101
  • LABs/CLBs: 645
  • Logic Elements/Cells: 10320
  • Total RAM Bits: 423936
  • Voltage Supply: 1.2V
  • Package/Case: 164-TFBGA
  • Supplier Device Package: 164-MBGA (8x8)
  • Operating Temperature: -40°C ~ 100°C (TJ)
  • ECCN: EAR99
  • MSL Level: 3 (168 Hours)
  • REACH: Unaffected
  • HTSUS: 8542.39.0001
